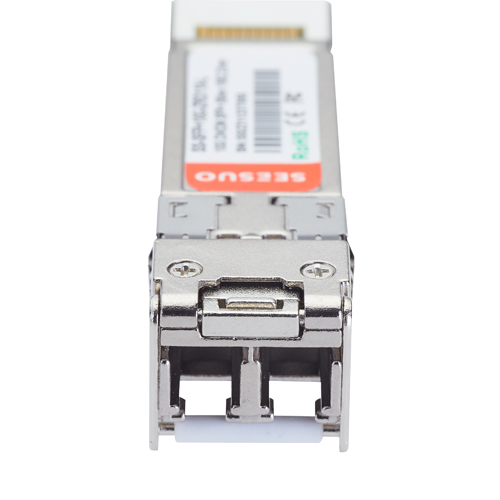

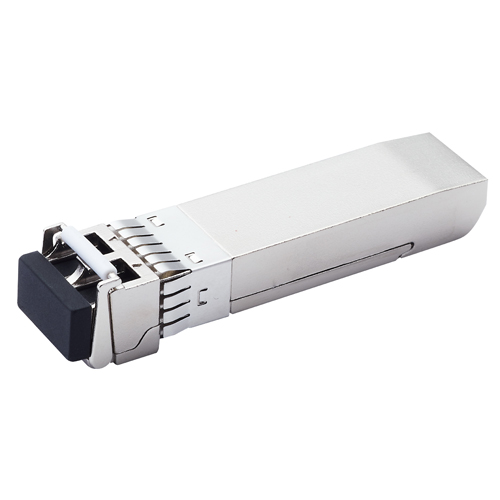

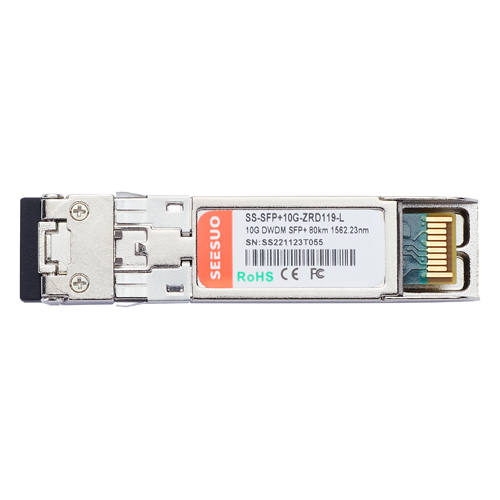

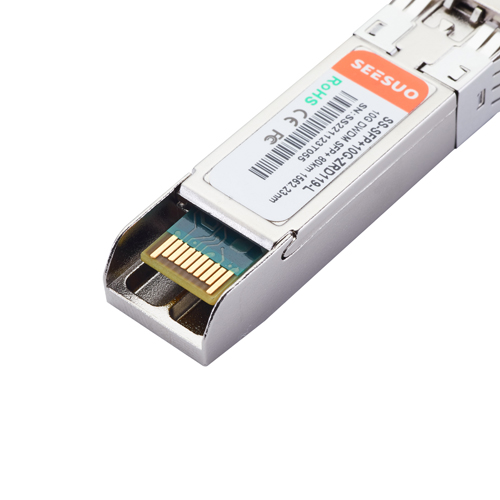

10G DWDM SFP+ transceiver module
Wavelength
C17 1563.86nmC18 1563.05nmC19 1562.23nmC20 1561.42nmC21 1560.61nmC22 1559.79nmC23 1558.98nmC24 1558.17nmC25 1557.36nm C26 1556.55nmC27 1555.75nmC28 1554.94nm C29 1554.13nmC30 1553.33nmC31 1552.52nmC32 1551.72nm C33 1550.92nmC34 1550.12nm C35 1549.32nmC36 1548.51nmC37 1547.72nmC38 1546.92nmC39 1546.12nmC40 1545.32nmC41 1544.53nmC42 1543.73nmC43 1542.94nmC44 1542.14nm C45 1541.35nmC46 1540.16nmC47 1539.77nmC48 1538.98nmC49 1538.19nmC50 1537.40nmC51 1536.61nm C52 1535.82nmC53 1535.04nmC54 1534.64nmC55 1533.47nmC56 1532.68nm C57 1531.90nmC58 1531.12nm C59 1530.33nmC60 1529.55nm C61 1528.77nm
Port Type
OEM
10G DWDM SFP+ transceiver module
10G DWDM SFP+ transceiver supports up to 100km link lengths over single-mode fiber (SMF) via an LC duplex connector. It is compliant with SFF-8431 and SFF-8432 MSA standards. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, to allow access to real-time operating parameters. With these features, this easy to install, hot swappable transceiver is suitable to be deployed in the DWDM networking equipment in metropolitan access and core networks.
PRODUCT SPECIFICATIONS
Up to 11.3Gbps
Wavelength selectable to C-band and L-band ITU-T grid wavelengths
Suitable for use in 50GHz/100GHz channel spacing DWDM systems
DWDM SFP+ MSA Compliant
Low Power Dissipation
Compatible with RoHS
Single 3.3V power supply
Operating case temperature: Standard: 0 to +70°C
SCOPE OF APPLICATION
10G Ethernet
Fiber Channel
Metro/Access Networks
Switched backplane applications
Router/Server interface
Other optical transmission systems
BESTSELLERS
| Product Model | Rate | Wavelength | Distance | Connector | Cable Type | DDM | Frequency |
|---|---|---|---|---|---|---|---|
| SS-SFP+10G-ERD1XX-L | 10G | C17 1563.86nm~C61 1528.77nm | 40km | LC | SMF | With DDM | 50Ghz |
| SS-SFP+10G-ZRD1XX-L | 10G | C17 1563.86nm~C61 1528.77nm | 80km | LC | SMF | With DDM | 50GHz |
| SS-SFP+10G-ZR+D1XX-L | 10G | C17 1563.86nm~C61 1528.77nm | 100km | LC | SMF | With DDM | 50GHz |
| SS-SFP+10G-ERD2XX-L | 10G | C17 1563.86nm~C61 1528.77nm | 40km | LC | SMF | With DDM | 100GHz |
| SS-SFP+10G-ZRD2XX-L | 10G | C17 1563.86nm~C61 1528.77nm | 80km | LC | SMF | With DDM | 100GHz |
| SS-SFP+10G-ZR+D2XX-L | 10G | C17 1563.86nm~C61 1528.77nm | 100km | LC | SMF | With DDM | 100GHz |
