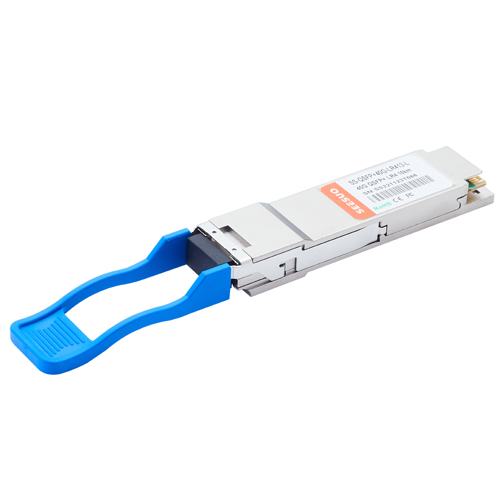

40G and 100G Optical Transceiver Module
Type
40G Dual Fiber QSFP+100G Dual Fiber QSFP28
Wavelength
850nm1310nm
Distance
100m2km10km20km40km
Port Type
LC Port MPO Port
Online consultationOnline consultation
Product list FAQ Reviews Resources Other

SEESUO's 40G and 100G Optical Transceiver Module is a Cisco® compatible 40/100GBase QSFP+ Optical Transceiver and is factory pre-programmed with all the necessary configuration data for seamless network integration. Our transceivers perform identically to Cisco® original transceivers and are 100% compatible with other OEM and third party transceivers. The Cisco compatible 40G and 100G Optical Transceiver Module transceiver is 100% MSA (Multi-Source Agreement) compliant. All SEESUO's transceivers are tested for 100% functionality and guaranteed compatible for outstanding network performance.

SEESUO offers all brands and form factors of Optical Transceivers for all your networking needs. Now you have a reliable, compatible and affordable means to expand your network while maintaining its integrity.

Product Quality

Since its inception in 2017, SEESUO has continually refined its processes to assure the best possible quality for our customers. The foundational elements of these processes are Record-Keeping and Quality Assurance Testing (QAT). To maintain a robust data archive, each part is individually serialized both in its internal EEPROM memory and on its external label. All QAT results and other important information (e.g., manufacture date, compatibility programming) are associated with each Serial Number stored in our cloud-based secure database. QAT consists of visual part inspection as well as verification of all critical parameters and performance of each part. For the QSFP-40G-SR-BD-FL optical output power and wavelength (850nm/900nm) are verified on optical spectrum analyzers. Receiver sensitivity is verified at both minimum distance and the 100m maximum range over actual (not simulated) MMF , multimode fiber cable. Digital Diagnostics Monitoring (DDM) parameters including: optical output power, receive optical power, internal module temperature, transmit bias current and supply voltage, are tested for compliance with specifications. In addition, the part is verified for proper operation across its full operating temperature range, 0C to 50C.

The 40G QSFP+ (Quad Small Form-factor the Pluggable Plus) transceivers are hot-swappable input/output devices that plug into 40-Gigabit Ethernet module ports. QSFP+ has four-channel SFP+ interfaces which can transfer rates up to 40Gbps. It supports a variety of data transfer rates as well as Ethernet, Fiber Channel and other multi-protocols. SEESUO supply compatible 40G QSFP+ with 100% guaranteed and tested.


FAQ:

What are the different types of 100G SFP?



type

Product Features

Applications

100G QSFP28 DR1

  • QSFP28 MSA compliant

  • Supports 53.125Gbaud

  • 3cd 100GBASE-DR Specification compliant

  • Up to 500m transmission on single-mode fiber (SMF) with FEC

  • Operating case temperature: 0 to 70℃

  • 4x25G electrical interface (OIF CEI-28G- VSR)

  • Maximum power consumption 4W

  • LC duplex connector

  • RoHS compliant

  • Data Center Interconnect

  • 100G Ethernet

  • Enterprise networking

100G QSFP28 FR1

  • QSFP28 MSA compliant

  • Supports 53.125Gbaud

  • 100G Lambda MSA 100G-FR Specification compliant

  • Up to 2km transmission on single-mode fiber (SMF) with FEC

  • Operating case temperature: 0 to 70℃

  • 4x25G electrical interface (OIF CEI-28G- VSR)

  • Maximum power consumption 4.5W

  • LC duplex connector

  • RoHS compliant

  • Data Center Interconnect

  • 100G Ethernet

  • Enterprise networking

100G QSFP28 FR1 CXX (1270nm,1290nm,1310nm,1330nm)

  • Supports 100Gbps

  • 100G Lambda MSA 100G-FR SpecificationCompliant

  • Single 3.3V Power Supply

  • Power Dissipation < 4.5W

  • Up to 2km over SMF with FEC

  • QSFP28 MSA Compliant

  • SFF-8636 Rev 2.10a Compliant

  • 4x25G Electrical Interface

  • LC Duplex Connector

  • Commercial Case Temperature Range of0°C to 70°C

  • I 2 C Interface With Integrated Digital DiagnosticMonitoring

  • Safety Certification: TUV/UL/FDA

  • RoHS Compliant

  • Data Center Interconnect

  • 100G Ethernet

100G QSFP28 LR1

  • QSFP28 MSA compliant

  • Supports 53.125Gbaud

  • 100G Lambda MSA 100G-LR Specification compliant

  • Up to 10km transmission on single-mode fiber (SMF) with FEC

  • Operating case temperature: 0 to 70oC

  • 4x25G electrical interface (OIF CEI-28G- VSR)

  • Maximum power consumption 4.5W

  • LC duplex connector

  • RoHS compliant

  • Data Center Interconnect

  • 100G Ethernet

  • Enterprise networking

100G QSFP28 LR1 CWDM (1270nm,1290nm,1310nm,1330nm)

  • Supports 100Gbps

  • 100G Lambda MSA 100G-LR SpecificationCompliant

  • Single 3.3V Power Supply

  • Power Dissipation < 4.5W

  • Up to 10km over SMF with FEC

  • QSFP28 MSA Compliant

  • SFF-8636 Rev 2.10a Compliant

  • 4x25G Electrical Interface

  • LC Duplex Connector

  • Commercial Case Temperature Range of0°C to 70°C

  • I 2 C Interface with Integrated Digital DiagnosticMonitoring

  • Safety Certification: TUV/UL/FDA

  • RoHS Compliant

  • Data Center Interconnect

  • 100G Ethernet

100G QSFP28 IR4

  • 1Gb/s, each lane bit rate 25.78 Gb/s

  • Up to 2km transmission on single-mode fiber (SMF) with FEC

  • CWDM DFB laser and PINreceiver

  • I2C interface with integrated Digital Diagnostic monitoring

  • QSFP28 MSA package with duplex LC connector

  • Single +3.3V power supply

  • 4 CWDM lanes MUX/DEMUX design

  • 100G CWDM4 MSA Technical Spec Rev1.1

  • Maximum power consumption 3.5W

  • Operating case temperature: 0 to +70°C

  • Complies with EU Directive 2011/65/EU (RoHS 6/6)

  • Data Center Interconnect

  • 100G Ethernet

  • Infiniband QDR and DDR interconnect

  • Enterprise networking

100G QSFP28 SR4

  • Hot-pluggable QSFP28 form factor

  • Supports 103.1Gb/s  aggregate bit rates

  • Power dissipation < 3.5W

  • RoHS-6 compliant

  • Commercial case temperature range of 0°C to 70°C

  • Single 3.3V power supply

  • Maximum link length of 100m on OM4 Multimode Fiber (MMF)

  • 4x25Gb/s 850nm VCSEL-based transmitter

  • 4x25G electrical interface

  • Single MPO12 receptacle

  • I2C management interface

  • 100GBASE-SR4 100G Ethernet

  • Data Center Interconnect

  • Infiniband QDR and DDR interconnect

  • Enterprise networking

112G QSFP28 SR4

  • Hot-pluggable QSFP28 form factor

  • Supports 103.1Gb/s to 112.2Gb/s aggregate bit rates

  • Power dissipation < 3.5W

  • RoHS-6 compliant

  • Commercial case temperature range of 0°C to 70°C

  • Single 3.3V power supply

  • Maximum link length of 100m on OM4 Multimode Fiber (MMF)

  • 4x25Gb/s 850mm VCSEL-based transmitter

  • 4x25G electrical interface

  • Single MPO12 receptacle

  • I2C management interface

  • 100GBASE-SR4 100G Ethernet

  • 128G Fiber Channel

  • 4x28Gb/s Multimode OTN

100G QSFP28 LR4

  • 1Gb/s, each lane bit rate 25.78 Gb/s

  • Up to 10km transmission on SMF

  • LAN WDM DFB laser and PINreceiver

  • I2C interface with integrated Digital Diagnostic monitoring

  • QSFP28 MSA package with duplex LC connector

  • Single +3.3V power supply

  • Maximum power consumption 4W

  • Operating case temperature: 0 to +70°C

  • Complies with EU Directive 2011/65/EU (RoHS 6/6)

  • 100GBASE-LR4 100G Ethernet

100G QSFP28 LR4-20

  • 4 lanes MUX/DEMUX design

  • Integrated LAN WDM TOSA / ROSA for up to 20km reach over SMF

  • Support 100GBASE-LR4 for a line rate of 103.125Gbps and OTU4 for a line rate of 111.81Gbps

  • Aggregate bandwidth of > 100Gbps

  • Duplex LC connectors

  • Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standard ITU-T G.959.1-2012-02 standard

  • Single +3.3V power supply operating

  • Built-in digital diagnostic functions

  • Temperature range from 0°C to 70°C

  • RoHS Compliant Part

  • Support FEC(Forward Error Correction)

  • Local Area Network (LAN)

  • Wide Area Network (WAN)

  • Ethernet switches and router applications

112G QSFP28 LR4

  • Supportsmulti-rate (100GBASE 100GE and OTU4); from 1Gb/s to 111.8Gb/s aggregate;

  • Lane bit rate 25.78 Gb/s 100GE, 27.95 Gb/s OTU4;

  • Up to 10km transmission on SMF;

  • LAN WDM DML laser and PIN receiver;

  • High-speed I/O electrical interface (CAUI-4);

  • I2C interface with integrated Digital Diagnostic monitoring;

  • QSFP28 MSA package with duplex LC connector;

  • Single +3.3V power supply;

  • Support HW TX_DIS and RX_LOS for telecom applications;

  • Maximum power consumption 3.5W;

  • Operating case temperature: 0 to +70°C;

  • Compliant to IEEE 802.3bm, SFF-8665 and SFF-8679;

  • Complies with EU Directive 2011/65/EU (RoHS 6/6);

  • 100GBASE-LR4

100G QSFP28 ER4

  • Hot-pluggable QSFP28 MSA form factor

  • Compliant to Ethernet 100GBASE-ER4 Lite

  • Supports 103.1Gb/s aggregate bit rate

  • Up to 30km reach for G.652 SMF without FEC

  • Up to 40km reach for G.652 SMF with FEC

  • Single +3.3V power supply

  • Operating case temperature: 0~70°C

  • Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)

  • Receiver: 4x25Gb/s APD ROSA

  • 4x25G electrical interface (OIF CEI-28G-VSR)

  • Maximum power consumption 4.5W

  • Duplex LC receptacle

  • RoHS-6 compliant

  • 100GBASE-ER4 EthernetLinks

  • Infiniband QDR and DDR interconnect

  • Client-side 100G Telecom connections

112G QSFP28 ER4

  • Supports100GBASE(1Gb/s) and OTU4(111.8Gb/s) aggregate;

  • Lane bit rate 25.78 Gb/s100GE, 27.95Gb/s OTU4;

  • Up to 30km transmission on SMF;

  • LAN WDM EML laser and APD receiver;

  • High speed I/O electrical interface (CAUI-4);

  • I2C interface with integrated Digital Diagnostic monitoring;

  • QSFP28 MSA package with duplex LC connector;

  • Single +3.3V power supply;

  • Maximum power consumption 5W;

  • Operating case temperature: 0 to +70°C;

  • Compliant to SFF-8665 and SFF-8679;

  • Complies with EU Directive 2011/65/EU (RoHS 6/6);

  • 100GBASE-ER4 Lite

100G QSFP28 ZR4

  • QSFP28 MSA compliant

  • Hot-pluggable 38 pins’ electrical interface

  • 4 LAN-WDM lanes MUX/DEMUX design

  • 4x25G electrical interface

  • Maximum power consumption 6.5W

  • LC duplex connector

  • Supports 103.125Gb/s aggregate bit rate

  • Up to 80km transmission on single-mode fiber

  • Operating case temperature: 0℃ to 70℃

  • Single 3.3V power supply

  • 100GBASE-ZR4 100G Ethernet

  • Telecom networking

100G QSFP28 ZR4+

  • Supports100GBASE 100GE

  • Lane bit rate 25.78 Gb/s 100GE

  • Up to 100km transmission on SMF;

  • LAN WDM laser and PIN receiver with SOA;

  • Support Multi-Pin function with IntL/RxLOSL and LPMode/TxDIS;

  • High-speed I/O electrical interface (CAUI-4);

  • I2C interface with integrated Digital Diagnostic monitoring;

  • QSFP28 MSA package with duplex LC connector;

  • Single +3.3V power supply;

  • Typical power consumption is 6.5W;

  • Operating case temperature: 0 to +70°C;

  • Compliant to IEEE 802.3bm and ITU-T G.959;

  • Compliant to SFF-8636 and SFF-8679;

  • Complies with EU Directive 2015/863/EU

  • 100GBASE-ZR4 plus

100G QSFP28 SR BD

  • Compliant to the 100GbE XLPPI electrical specification per IEEE 802.3bm

  • Compliant to QSFP28SFF-8636 Specification

  • Aggregate bandwidth of > 100Gbps

  • Dual-wavelength VCSEL bi-directional optical interface, PAM4 2 × 50-Gb/s 850nm/900 nm

  • QSFP28MSA compliant

  • Capable of over 70m transmission on OM3 Multimode Fiber (MMF)and 100m on OM4 MMF

  • Single +3.3V power supply operating

  • With digital diagnostic functions

  • Temperature range from 0°C to 70°C

  • RoHS Compliant Part

  • Utilizes a standard LC duplex fiber cable allowing reuse of existing cable infrastructure

  • 100 Gigabit Ethernet interconnects

  • Datacom/Telecom switch & router connections

  • Data aggregation and backplane applications

  • Proprietary protocol and density applications

100G QSFP28 SWDM4 850nm-940nm 100m LC

  • Hot-pluggable QSFP28 form factor

  • Supports 103.1Gb/s aggregate bit rate

  • Power dissipation < 3.5W

  • RoHS-6 compliant

  • Commercial case temperature range of 0°C to 70°C

  • Single 3.3V power supply

  • Maximum link length of 75m/100m/150m on OM3/OM4/OM5 Duplex Multimode Fiber (MMF)

  • 4x25Gb/s 850mm VCSEL-based transmitter

  • 4x25G CAUI-4 electrical interface

  • Duplex LC receptacles

  • I2C management interface

  • 100G Ethernet over Duplex MMF

100G QSFP28 PSM4

  • 4 independent full-duplex channels

  • Up to 28Gb/s data rateper channel

  • QSFP28 MSA compliant

  • Compliant with IEEE 802.3bm 100GBASE PSM4

  • Up to 2km reach for G.652 SMF

  • Maximum power consumption 5W

  • Single +3.3V power supply

  • Operating case temperature: 0~70°C

  • RoHS-6compliant

  • 100G Ethernet links

  • Infiniband QDR and DDR interconnect

  • Datacenter and Enterprise networking

100G QSFP28 CWDM4

  • 1Gb/s, each lane bit rate 25.78 Gb/s

  • Up to 2km transmission on single-mode fiber (SMF) with FEC

  • LAN WDM DFB laser and PINreceiver

  • I2C interface with integrated Digital Diagnostic monitoring

  • QSFP28 MSA package with duplex LC connector

  • Single +3.3V power supply

  • 4 CWDM lanes MUX/DEMUX design

  • 100G CWDM4 MSA Technical Spec Rev1.1

  • Maximum power consumption 3.5W

  • Operating case temperature: 0 ~70°C

  • Complies with EU Directive 2011/65/EU (RoHS 6/6)

  • Data Center Interconnect

  • 100G Ethernet

  • Infiniband QDR and DDR interconnect

  • Enterprise networking

100G QSFP28 4WDM-10

  • 4 lanes MUX/DEMUX design

  • Integrated CWDM TOSA / ROSA for up to 10 km reach over SMF

  • Support 100GBASE-CWDM4 for a line rate of 103.125Gbps and OTU4 for a line rate of 111.81Gbps

  • Aggregate bandwidth of > 100Gbps

  • Duplex LC connectors

  • Compliant with IEEE 802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module  electrical standard ITU-T G.959.1-2012-02 standard

  • Single +3.3V power supply operating

  • Built-in digital diagnostic functions

  • Temperature range from 0°C to 70°C

  • RoHS Compliant Part

  • Support FEC(Forward Error Correction)

  • Local Area Network (LAN)

  • Wide Area Network (WAN)

  • Ethernet switches and router applications

100G (2x50G) DWDM PAM4 QSFP28 80km

  • Hot-pluggable QSFP28 MSA form factor

  • Up to 80km reach for G.652 SMF with transport white box

  • Single +3.3V power supply

  • Temperature Range 0 to 70°C

  • Transmitter: Cooled EML 2*27.5Gbaud/s DWDM TOSA

  • Receiver: 2*27.5Gbaud/s Pin-PD ROSA

  • 4*25G CAUI4 electrical interface

  • Integrated SFEC with high coding gain

  • PAM4 modulation format on 100GHz ITU DWDM wavelength grid compatible

  • Dual CS adaptor

  • Compatible with RoHS6

  • High bandwidth connectivity for Data Center Interconnection

  • 100G Ethernet Metro-Access over DWDM

  • P to P Access Network

100G DWDM QSFP28 PAM4 Single Wave 80km (Channel 15-61)

  • Supports 100Gbps

  • Available in all C-Band Wavelengths on the 100GHz DWDM ITU Grid

  • 80km reach over SMF with EDFA&DCM(dispersion compensation modules)

  • QSFP28 MSA Compliant

  • SFF-8636 Rev 2.10a Compliant

  • 4x25G Electrical Interface

  • LC Duplex Connector

  • Single 3.3V Power Supply

  • Power Dissipation < 5.5W

  • Commercial Case Temperature Range of 0°C to 70°C

  • I2C Interface with Integrated Digital Diagnostic Monitoring

  • Safety Certification: TUV/UL/FDA

  • RoHS Compliant

  • 100G Amplified DWDM Networks

  • Data Center Interconnects

100G QSFP28-23/32-BX10

  • Supports 100GBASE-LR1 BIDI

  • Lane signaling rate 103.125/106.25/111.8Gb/s with PAM4

  • Compatibility with 100G OTU4

  • Up to 10km transmission on SMF

  • EML Laser and PIN receiver

  • 78Gb/s with NRZ electrical interface (CAUI-4)

  • High speed I/O electrical interface

  • I2C interface with integrated Digital Diagnostic monitoring

  • QSFP28 MSA package with simplex LC connector

  • Single +3.3V power supply

  • Support HW TX_DIS and RX_LOS for telecom application

  • Maximum power consumption 4.5 W

  • Operating case temperature: 0 to +70 ℃

  • Compliant to 802.3cu, SFF-8636&SFF-8679 standard

  • Complies with EU Directive 2011/65/EU

  • 100GBASE-LR1 BIDI

100G QSFP28-23/32-BX20

  • Hot-pluggable QSFP28 MSA form factor

  • Supports 103.1Gb/s aggregate bit rate

  • Up to 20km reach for G.652 SMF with RS(528,514) FEC

  • Single +3.3V power supply

  • Extended case temperature range of -20 to 85℃

  • Cooled 4x25Gb/s LAN WDM Blue or Red Side TOSA, LAN WDM Red or Blue Side ROSA

  • Maximum power consumption 5.5W

  • Single LC receptacle

  • Compliant with the QSFP28 and 4WDM-20 MSA

  • Compatible with RoHS2.0

  • DDM function

  •

  • Ethernet Links

  • 100G 4WDM-20 Applications with FEC





Summary:

100G QSFP28 SR4 PSM4 CWDM4/IR4 LR4 ER4 ZR4 SRBD
Max Distance 100m 500m/2km 2km/10km 10km/20km 40km 80km 100m
Connector MPO 12 MPO 12 Duplex LC Duplex LC Duplex LC Duplex LC Duplex LC
Transmitter Type VCSEL DFB LAN WDM DFB LAN WDM DFB LAN WDM EML EML VCSEL
Wavelength 850nm 1310nm 1310nm 1310nm 1310nm 1296-1309nm LWDM 850nm & 900nm

Parameters of 100G QSFP28 popular products

Company Overview:


Shenzhen seesuo technology co., ltd. Was established in 2017, we have been engaged in this industry 7 years. Relying on 7 years of deep experience in the communication field and scientific and technological innovation ability, through the integration of multi-brand, full series of communication products resources, with a one-stop service model. Let the network better connect you and me, connect the world, and make ""Made in China"" can run smoothly in the world. In order to meet the needs of customers, we have eatablished a perfect supply chain system to provide super products with reliable quality and reasonable price. From demestic to international logistics, we have a complete transportation system and services.



We are devoted to offering SFP Optical Transceiver, Switches, Routers, Servers, Storages, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP, Optical fiber equipment. Our long-term aim is to provide users high-quality, efficient, economic, timely services. Looking forward to establish long-term and win-win business relations with you.



We are committed to achieving ""the same demand, more abundant sources; The same product, more favorable price, the same price, shorter delivery time; The same delivery time, more convenient service.



40Gbps QSFP+ transceivers are hot pluggable and designed for optical communication applications with form factor, optical/electrical connection, and digital diagnostic interface supporting both single mode fiber (SMF) from 10km to 80km with duplex LC connectors and multimode fiber (MMF) from 100m to 150m with MPO/MTP connectors. 100Gb/s QSFP28 transceivers have been designed to meet the harshest external operating conditions. 4×25Gbps hot pluggable fiber optic transceivers achieve up to 40km transmission with the optical single mode fiber (SMF). Via multimode fiber (MMF), the fiber optic modules integrate four parallel lanes with data rate at 25.78Gbps each lane. It can transmit up to 70 m on fiber OM3 fiber and 100 m on OM4 fiber with FEC. 40G and 100G fiber optical transceivers applies widely on Data Centers Switches, Metro networks, 100G Ethernet Links, Rack to Rack and Other optical transmission systems. If you need a large quantity of 40G and 100G Optical Transceiver Module product - Mail us through our E-mail at sales@seesuo.com or request a quote at live chat and our sales manager will contact you shortly.
BESTSELLERS
Product Model Rate Wavelength Distance Connector Cable Type DDM
SS-QSFP+40G-SR485-MO 40G 850nm 100m MP0 MMF With DDM
SS-QSFP+40G-XX413-L 40G 1310nm 10km,20km,40km,60km LC SMF With DDM
SS-QSFP28100G-SR485-L 100G 850nm 100m MPO MMF With DDM
SS-QSFP28100G-XX413-L 100G 1310nm 10km,20km,40km LC SMF With DDM
PRODUCT SPECIFICATIONS
  • Supports operation for a data rate of 40Gb/s or 103.1Gb/s
  • MTP/MPO connector Or Duplex LC connector
  • Compliant with IEEE 802.3ae
  • Hot-Pluggable
  • Digital Diagnostic Monitoring
  • Compatible with RoHS
  • +3.3V single power supply
  • Operating case temperature: Standard:  0 to +70°C
SCOPE OF APPLICATION
  • Rack to rack
  • Data centers Switches and Routers
  • Metro networks
  • 40G/100G Ethernet Links
  • Other optical transmission systems
PRODUCT PACKAGING
  • 4 pcs Transceivers pack with one plastic box.
  • 4 plastic boxes pack with one antistatic bag.
TECHNICAL DOCUMENT
COMPATIBLE
OEM&ODM SUPPORTED
  • OEM Manufacturer
    SEESUO supports OEM manufacturing by producing products according to the designs and specifications provided by the client. We strictly adhere to commercial confidentiality principles to protect the client's brand and privacy.
  • ODM Manufacturer
    SEESUO has extensive research and development experience and high-quality production management capabilities. We can develop and manufacture products specifically for our clients' brands according to their needs.
  • Customized production
    SEESUO offers highly customized product research and development and manufacturing services with a flexible production model. We are able to meet the small-batch customized production needs of some high-end clients.
  • R&D cooperation
    SEESUO is capable of adapting to the rapidly changing market demands and can collaborate with customers in research and development. We invest resources in R&D to meet customers' specialized requirements and build a strong brand moat.
PRODUCT PROBLEM
PRODUCT TESTING
  • Function Testing
  • 交换机兼容性测试
  • 工业化产线
  • 333333
  • 2222
  • 1111
OUR FACTORY
Our certificate
