Provide custom product specifica-tions, icons, logo, packaging.

10G CWDM SFP+/XFP transceiver modules are small form factor pluggable module for serial optical data communications. It is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength. There are 18 center wavelengths available from 1270 nm to 1610 nm, with each step 20 nm. A guaranteed minimum optical link budget of 14 dB is offered. SEESUO supplies OEM service and Third-Party(Cisco, Juniper, HP, Dell etc.) compatible fiber optic transceivers.

Feature:

Product Features

● Single +3.3 V Power Supply

● Built-in digital diagnostic functions

● 2G/4G/8G/10G Fibre Channel compliance

● Transmission distance up to 80km over SMF

● Power Budget up to 10dB, 14dB, 16dB, 23 dB

● Supports Multi Protocol 8.5Gb/s, 9.95Gb/s to 11.3Gb/s bit rates

● Class 1 Laser International Safety Standard IEC-60825 Compliant

● Uncooled 18-λ CWDM DFB/cooled EML LD: from 1270 nm to 1610 nm

● Can be used with single fiber CWDM system or dual fiber CWDM system

● Operating Case Temperature: Standard: 0~70°C; Extended: -20~85°C; Industrial: -40~85°C


Applications:

● SONET OC-192 / SDH STM-64

● OTN ITU-T G.709

● 10GBASE-SR/LR/ER/ZR Ethernet

● 10X/8X/4X/2X/1X Fibre Channel

● CWDM Networks

Cwdm Transceiver Applications

Cwdm Transceiver Supplier - China Factory, Suppliers, Manufacturers

Our merchandise are commonly identified and dependable by end users and will meet continually altering financial and social desires for Cwdm Transceiver Supplier, 10g Sfp+ Rj45, Long Range Multimode Sfp, Dual Sfp Media Converter,Mmf Sfp Module. Our mission is to help you create long-lasting relationships with your clients through the power of promotional products. The product will supply to all over the world, such as Europe, America, Australia,Brisbane, Hongkong,Malawi, Jordan.Due to our strict pursues in quality, and after-sale service, our product gets more and more popular around the world. Many clients came to visit our factory and place orders. And there are also many foreign friends who came for sight seeing, or entrust us to buy other stuff for them. You are most welcome to come to China, to our city and to our factory!

CWDM SFP Transceiver is a convenient and cost-effective solution for the adoption of Gigabit Ethernet and Fiber Channel(FC) in campus, data-center, and metropolitan-area access networks, with maximum optical budget 41dB. CWDM SFP modules support data rates from 100 Mbps up to 4.25 Gbps. There are 18 center wavelengths available from 1270 nm to 1610 nm, with each step 20 nm. These wavelengths are compliant to the ITU G.694 CWDM standard.

CWDM optical fiber modules, up to 18 CWDM wavelength over one pair of fiber. CWDM channel spacing 20 nm, 1270 nm to 1610 nm, distances up to 120 km.


Product Quality:

Since its inception in 2017, SEESUO has continually refined its processes to assure the best possible quality for our customers. The foundational elements of these processes are Record-Keeping and Quality Assurance Testing (QAT). To maintain a robust data archive, each part is individually serialized both in its internal EEPROM memory and on its external label. All QAT results and other important information (e.g., manufacture date, compatibility programming) are associated with each Serial Number stored in our cloud-based secure database. QAT consists of visual part inspection as well as verification of all critical parameters and performance of each part. For the CWDM-SFP-xxxx-FL optical output power and wavelength (1470-1610nm) are verified on optical spectrum analyzers. Receiver sensitivity is verified at both minimum distance and the 80km maximum range over actual (not simulated) SMF , singlemode fiber cable. Digital Diagnostics Monitoring (DDM) parameters including: optical output power, receive optical power, internal module temperature, transmit bias current and supply voltage, are tested for compliance with specifications. In addition, the part is verified for proper operation across its full operating temperature range, 0C to 50C.



FAQ:

Q:What is the difference between SFP+ optical module and SFP optical module?

The volume of SFP and SFP+ optical modules is basically the same, and the main difference is the transmission rate. The maximum transmission rate of SFP optical modules is 2.5Gb/s, while that of SFP+ optical modules is 10Gb/s. Due to the different transmission rates, their applications and transmission distances will vary.


Q:Can SFP+ optical modules be used in SFP ports?

Yes. 10G SFP+ optical modules can work when inserted in SFP ports, but the transmission rate is only 1Gbps; however, SFP optical modules cannot be used in SFP+ ports.


Q:What is the longest transmission distance supported by SFP+ optical modules?

Depending on the type of fiber used, the transmission distance is also different. The transmission distance is 300 meters when used with OM1 multi-mode fiber, and the longest distance, when used with OS2 single-mode fiber, is currently 120 kilometers.


Q:Can SFP+ optical modules be used with SFP+/QSFP high-speed cables?

Can't. The SFP+/QSFP high-speed cable can be directly inserted into the SFP+/QSFP port of the switch to connect the switches at both ends without using optical modules.


Q:Will SFP+ optics automatically configure between 1GbE and 10GbE?

Auto configuration is not supported between 10GE and 1GE rates.

Coarse Wavelength-Division Multiplexing (CWDM) Small Form-Factor Pluggable (SFP) solution allows enterprise companies and service providers to provide scalable and easy-to-deploy Gigabit Ethernet and Fiber Channel in campus, data-center, and metropolitan-area access networks. 1.25Gbps and 2.5Gbps CWDM SFP transceivers are high-performance, cost-effective modules supporting 40km, 80km and 120km transmission distance with single mode fiber (SMF) via wavelength of 1270nm to 1610nm. 10G CWDM SFP+ Transceivers and 10G CWDM XFP transceivers are designed for 10GBASE-LR/ER/ZR applications achieve the transmission from 10km up to 80km. SEESUO CWDM transceivers comply with industry-standard SFF-8472 multisource agreement (MSA) and provide an enhanced monitoring interface, which allow real-time access to device operating parameters. If you need a large quantity of CWDM Optical Transceiver Module product - Mail us through our E-mail at sales@seesuo.com or request a quote at live chat and our sales manager will contact you shortly.
BESTSELLERS
Product Model Rate Wavelength Distance Connector Cable Type DDM

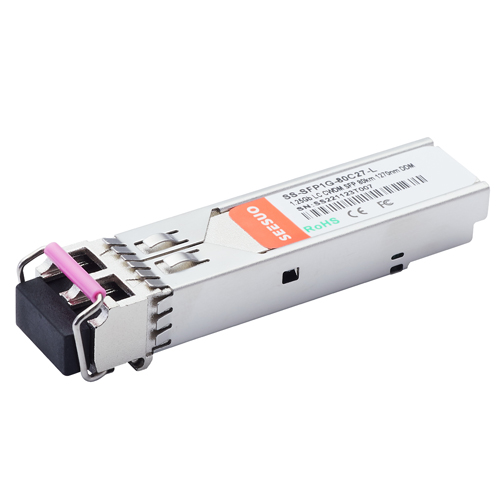

SS-SFP1G-xxCxx-L 1.25G 1270nm~1610nm 40km,80km,120km LC SMF With DDM

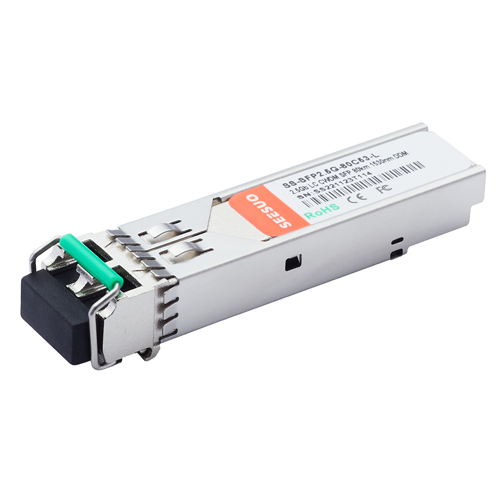

SS-SFP2.5G-xxCxx-L 2.5G 1270nm~1610nm 40km,80km,120km LC SMF With DDM
SS-SFP+10G-LRCxx-L 10G 1270nm~1610nm 10km,20km LC SMF With DDM
SS-SFP+10G-ERCxx-L 10G 1270nm~1330nm, 1470nm~1610nm 40km LC SMF With DDM
SS-SFP+10G-ZRCxx-L 10G 1470nm~1610nm 80km LC SMF With DDM
SS-XFP10G-LRCxx-L 10G 1270nm~1610nm 10km,20km LC SMF With DDM
SS-XFP10G-ERCxx-L 10G 1270nm~1330nm, 1470nm~1610nm 40km LC SMF With DDM

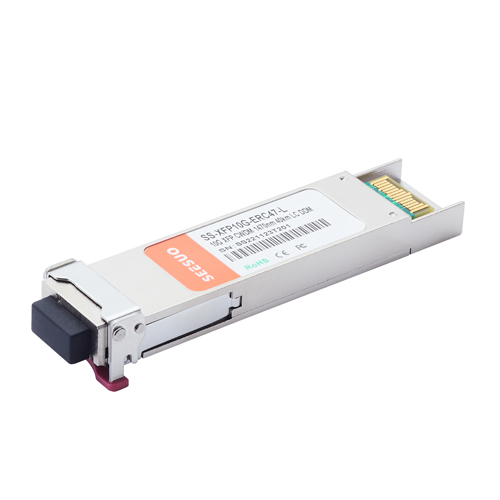

SS-XFP10G-ZRCxx-L 10G 1470nm~1610nm 80km LC SMF With DDM
PRODUCT SPECIFICATIONS
  • Supports from 1.25Gb/s to 10.3Gb/s data rates
  • Supports from 1270nm to 1610nm wavelength
  • Hot-Pluggable
  • Low power consumption
  • Digital Diagnostic Monitoring
  • Compatible with RoHS
  • +3.3V power supply
  • Operating case temperature: Standard:  0 to +70°C
SCOPE OF APPLICATION
  • Gigabit Ethernet,10G Ethernet
  • Metro/Access Networks
  • Switched backplane applications
  • Router/Server interface
  • Other optical transmission systems
PRODUCT PACKAGING
  • 5pcs or 10pcs Transceivers pack with one plastic box.
  • 4 plastic boxes pack with one antistatic bag.
TECHNICAL DOCUMENT
COMPATIBLE
OEM&ODM SUPPORTED
  • OEM Manufacturer
    SEESUO supports OEM manufacturing by producing products according to the designs and specifications provided by the client. We strictly adhere to commercial confidentiality principles to protect the client's brand and privacy.
  • ODM Manufacturer
    SEESUO has extensive research and development experience and high-quality production management capabilities. We can develop and manufacture products specifically for our clients' brands according to their needs.
  • Customized production
    SEESUO offers highly customized product research and development and manufacturing services with a flexible production model. We are able to meet the small-batch customized production needs of some high-end clients.
  • R&D cooperation
    SEESUO is capable of adapting to the rapidly changing market demands and can collaborate with customers in research and development. We invest resources in R&D to meet customers' specialized requirements and build a strong brand moat.
PRODUCT PROBLEM
PRODUCT TESTING
