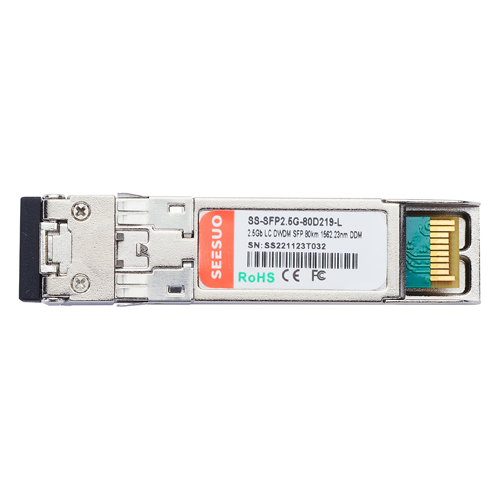

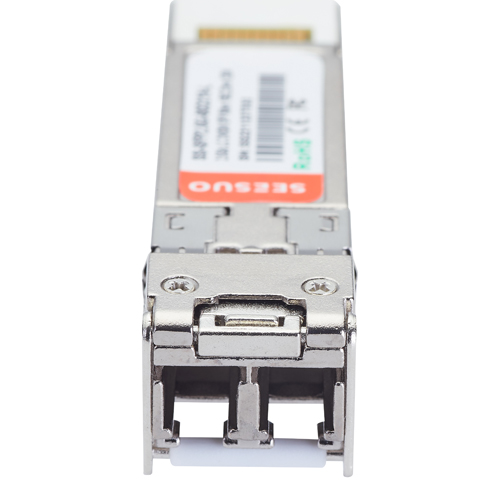

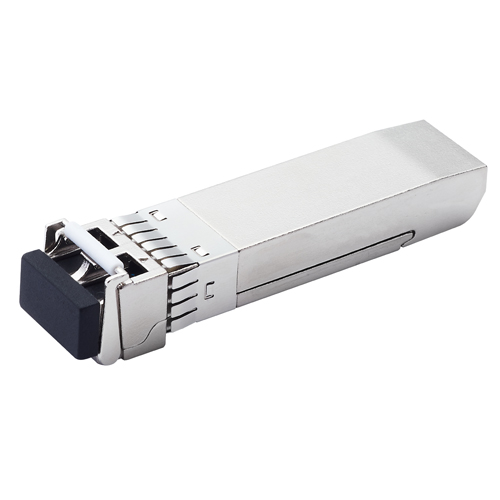

2.5G DWDM SFP transceiver module
Wavelength
C17 1563.86nmC18 1563.05nmC19 1562.23nmC20 1561.42nmC21 1560.61nmC22 1559.79nmC23 1558.98nmC24 1558.17nmC25 1557.36nm C26 1556.55nmC27 1555.75nmC28 1554.94nm C29 1554.13nmC30 1553.33nmC31 1552.52nmC32 1551.72nm C33 1550.92nmC34 1550.12nm C35 1549.32nmC36 1548.51nmC37 1547.72nmC38 1546.92nmC39 1546.12nmC40 1545.32nmC41 1544.53nmC42 1543.73nmC43 1542.94nmC44 1542.14nm C45 1541.35nmC46 1540.16nmC47 1539.77nmC48 1538.98nmC49 1538.19nmC50 1537.40nmC51 1536.61nm C52 1535.82nmC53 1535.04nmC54 1534.64nmC55 1533.47nmC56 1532.68nm C57 1531.90nmC58 1531.12nm C59 1530.33nmC60 1529.55nm C61 1528.77nm
Distance
40km80km120km
Port Type
LC Port
Online consultationSend email
OEM
OEM
Provide custom product specifica-tions, icons, logo, packaging.
Product list Bestsellers Reviews&Resource
Features
2.5G DWDM SFP transceiver module
2.5G DWDM SFP transceiver supports up to 120km link lengths over single-mode fiber (SMF) via an LC duplex connector. Each SFP transceiver module is designed for single mode fiber and operates at a nominal wavelength of 100GHz or 50GHz ITU Grid, C Band DWDM wavelength. Featuring low power consumption, the hot swappable 2.5G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN Networks and other optical links.
PRODUCT SPECIFICATIONS

Up to 2.488Gbps

Wavelength selectable to C-band and L-band ITU-T grid wavelengths

Suitable for use in 50GHz/100GHz channel spacing DWDM systems

OC48/STM-16 Long Reach 80km (1600 ps/nm),120km (2400 ps/nm) Versions

DWDM SFP MSA Compliant

Low Power Dissipation

Compatible with RoHS

Single 3.3V power supply

Operating case temperature: Standard:  0 to +70°C

SCOPE OF APPLICATION

Gigabit Ethernet

Fiber Channel

Metro/Access Networks

Switched backplane applications

Router/Server interface

Other optical transmission systems

BESTSELLERS
Product ModelRateWavelengthDistanceConnectorCable TypeDDMFrequency
SS-SFP2.5G-40D1XX-L2.5GC17 1563.86nm~C61 1528.77nm40kmLCSMFWith DDM50Ghz
SS-SFP2.5G-80D1XX-L2.5GC17 1563.86nm~C61 1528.77nm80kmLCSMFWith DDM50GHz
SS-SFP2.5G-120D1XX-L2.5GC17 1563.86nm~C61 1528.77nm120kmLCSMFWith DDM50GHz
SS-SFP2.5G-40D2XX-L2.5GC17 1563.86nm~C61 1528.77nm40kmLCSMFWith DDM100GHz
S-SFP2.5G-80D2XX-L2.5GC17 1563.86nm~C61 1528.77nm80kmLCSMFWith DDM100GHz
SS-SFP2.5G-120D2XX-L2.5GC17 1563.86nm~C61 1528.77nm120kmLCSMFWith DDM100GHz
