ABS Box Fiber PLC Splitter
Planar light wave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity. These ABS PLC splitters are widely used in PON networks to realize optical signal power splitting as a low-cost solution. SEESUO provides whole series of 1xN，2xN splitter products that are customized tailored for specific applications.
PRODUCT SPECIFICATIONS
Low Insertion Loss ≤23.8dB
Low PDL (Polarization Dependent Loss) ≤0.4dB
Compact Design
Fully Passive Optical Branching Device
Wide Operating Wavelength: 1260nm to 1650nm
Wide Operating Temperature: -40°C to 85°C
Conformed to ISO9001, RoHS, CE, FCC standards
SCOPE OF APPLICATION
FTTX Systems
LAN, WAN and Metro Networks
Analog/Digital Passive Optical Networks
CATV Networks
Other applications in fiber optic systems
BESTSELLERS
| Product Model | Input and Output | Fiber Type | Length | Diameter | Connector |
|---|---|---|---|---|---|
| SS-1x8-ASSA-20A1 | 1 x 8 | SMF G657A1 | 1m | 2.0mm | SC/APC |
| SS-1x16-AXXA-20A1 | 1 x 16 | SMF G657A1 | 1m | 2.0mm | SC/APC , LC/APC |
| SS-1x32-AXXA-20A1 | 1 x 32 | SMF G657A1 | 1m | 2.0mm | SC/APC , LC/APC |
| SS-2x16-A-20A1 | 2 x 16 | SMF G657A1 | 1m | 2.0mm | - |
| SS-2x32-A-20A1 | 2 x 32 | SMF G657A1 | 1m | 2.0mm | - |
| SS-2x128-ASSA-20A1 | 2 x 128 | SMF G657A1 | 1m | 2.0mm | SC-APC |
COMPATIBLE
OEM&ODM SUPPORTED
OEM Manufacturer
SEESUO provides tailored OEM products based on clients' designs and specs.
ODM Manufacturer
SEESUO boastis rich R&D experence and top-notch production management.
Customized production
SEESUO provides talored product design,development, and flexible manufacturing.
R&D cooperation
SEESUO adapts swifly to market changes collaborating with customers in R&D.
AFTER-SALES SERVICE
The laser, golden finger, and lens of the optical module all come with a one-year warranty.
Learn more >
PRODUCT TESTING
-
Mechanical Durability InspectiAssesses physical durability of splitter components to withstand handling, installation, and long-term use without performance degradation. -
Environmental Stability AnalysTests performance under varying temperatures and humidity to ensure stable operation in diverse environmental conditions. -
Wavelength Range ValidationVerifies splitter performance across specified wavelength ranges to confirm compatibility with different wavelengths in fiber networks. -
Return Loss EvaluationEvaluates reflection loss within the splitter, ensuring high return loss values to prevent signal disruption and enhance stability. -
Uniformity AssessmentAssesses signal uniformity across output channels to guarantee even power distribution, vital for consistent network performance. -

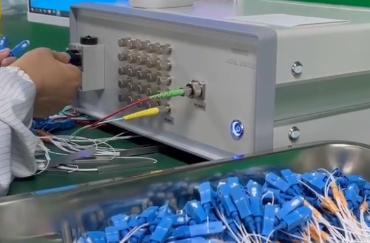

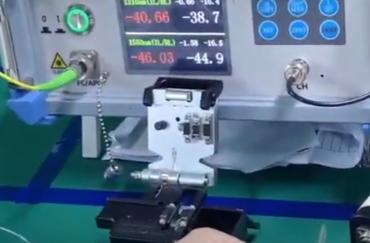

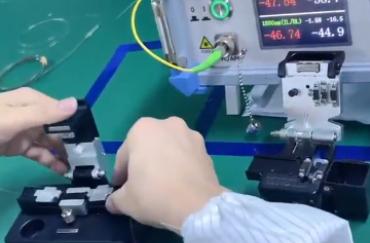

Optical Insertion Loss MeasureMeasures insertion loss across splitter outputs to confirm minimal signal attenuation, ensuring efficient signal distribution.
Our certificate
-
GST
-
ISO
-
ROSH
-
CE
-
FCC

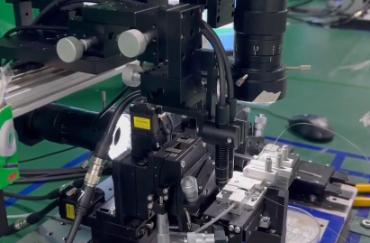

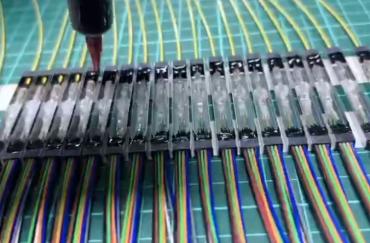

OUR FACTORY
COMMON PROBLEM
How to measure attenuation in optical fiber
+
-
Attenuation in optical fiber is measured using an optical power meter and a light source. The light source sends a signal through the fiber, and the power meter measures the output signal strength at the other end. The difference between input and ou
What is the loss of each port in plc splitter?
+
-
In a PLC (Planar Lightwave Circuit) splitter, each port incurs a typical insertion loss depending on the split ratio. For example, an ideal 1x2 splitter has around 3.5 dB loss per port, while a 1x4 splitter has about 7 dB, and a 1x8 splitter has arou
How does fiber optic cable splitter work
+
-
A fiber optic splitter divides a single optical signal into multiple outputs using internal waveguides. The incoming light is split evenly across output fibers, sharing signal power among them. PLC splitters enable one fiber to connect to multiple en
