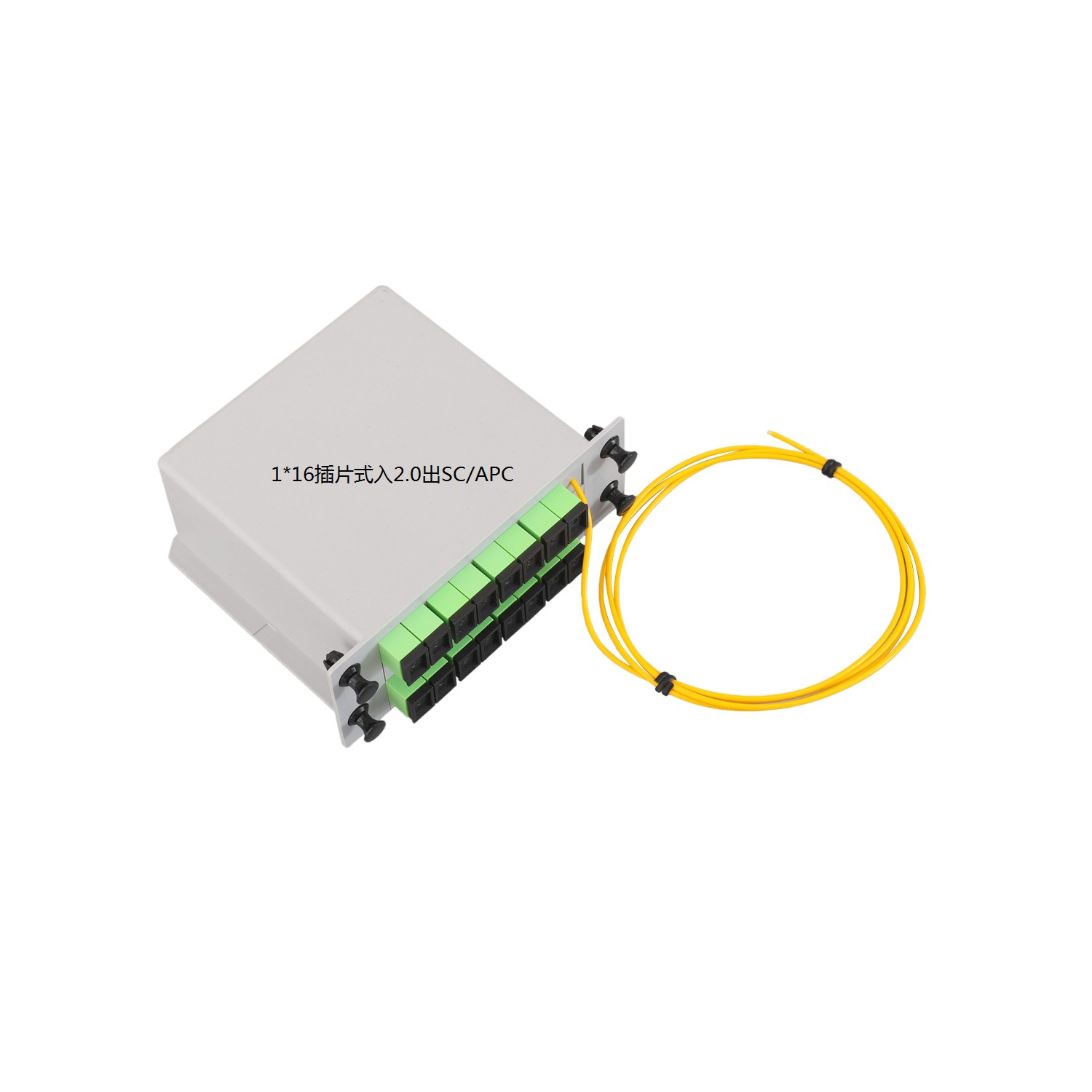

1x4 1x8 1x16 1x32 Customized FTTH PLC Splitter
Package

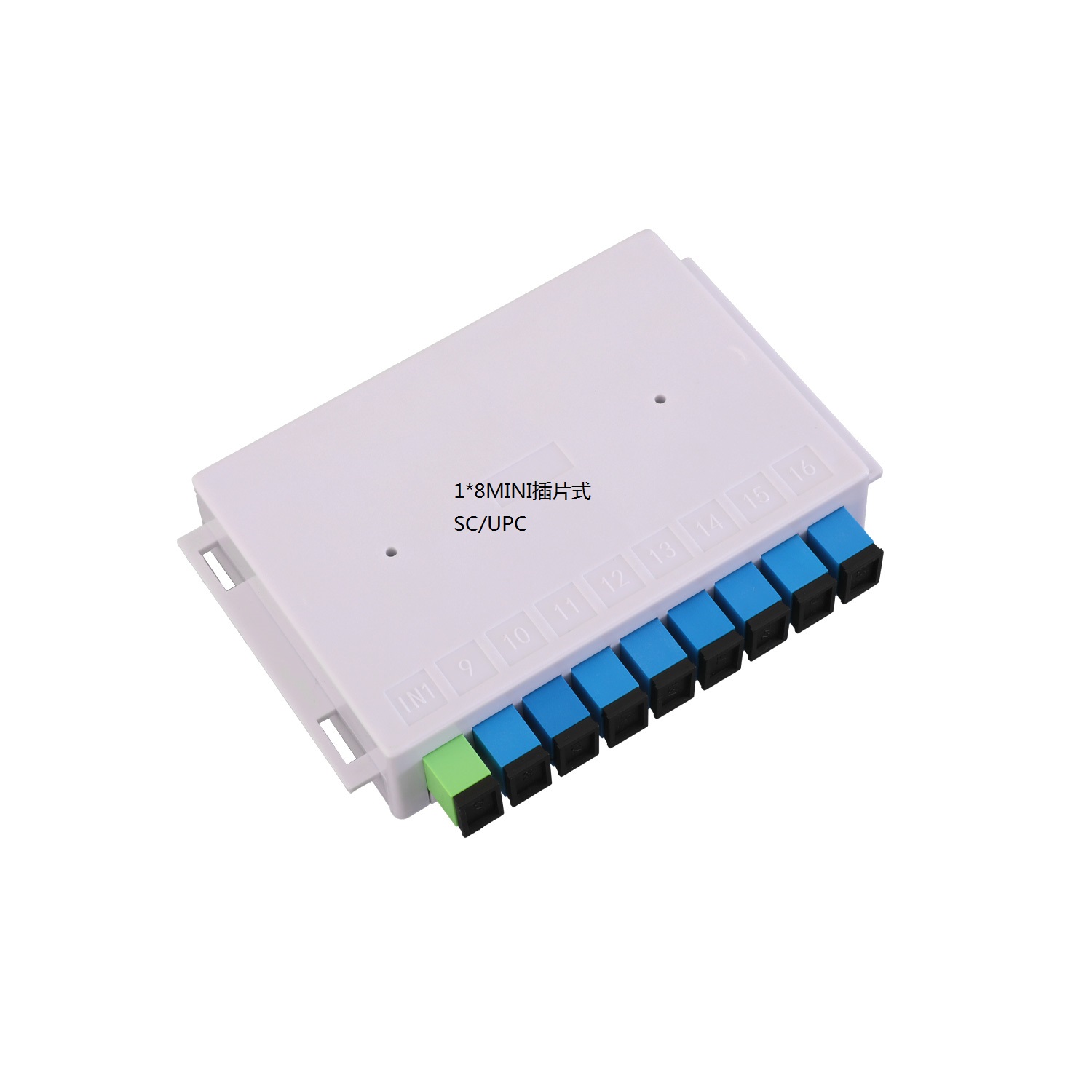

Steel Tube/Bolckless Type Mini ABS Module Plugin Module AL Plugin Box Terminal Box Customized
Splitting Ratio
85/15 80/20 75/25 70/30 60/40 40/60 Customized
Fiber
G657A1 OM1 OM3 OM4 Customized
Connectors
SC/APC SC/UPC LC/APC LC/UPC MPO/APC MPO/PC No connector Customized
Online consultationSend email
OEM
OEM
Provide custom product specifica-tions, icons, logo, packaging.
Product list Bestsellers Reviews&Resource
Features
1x4 1x8 1x16 1x32 Customized FTTH PLC Splitter

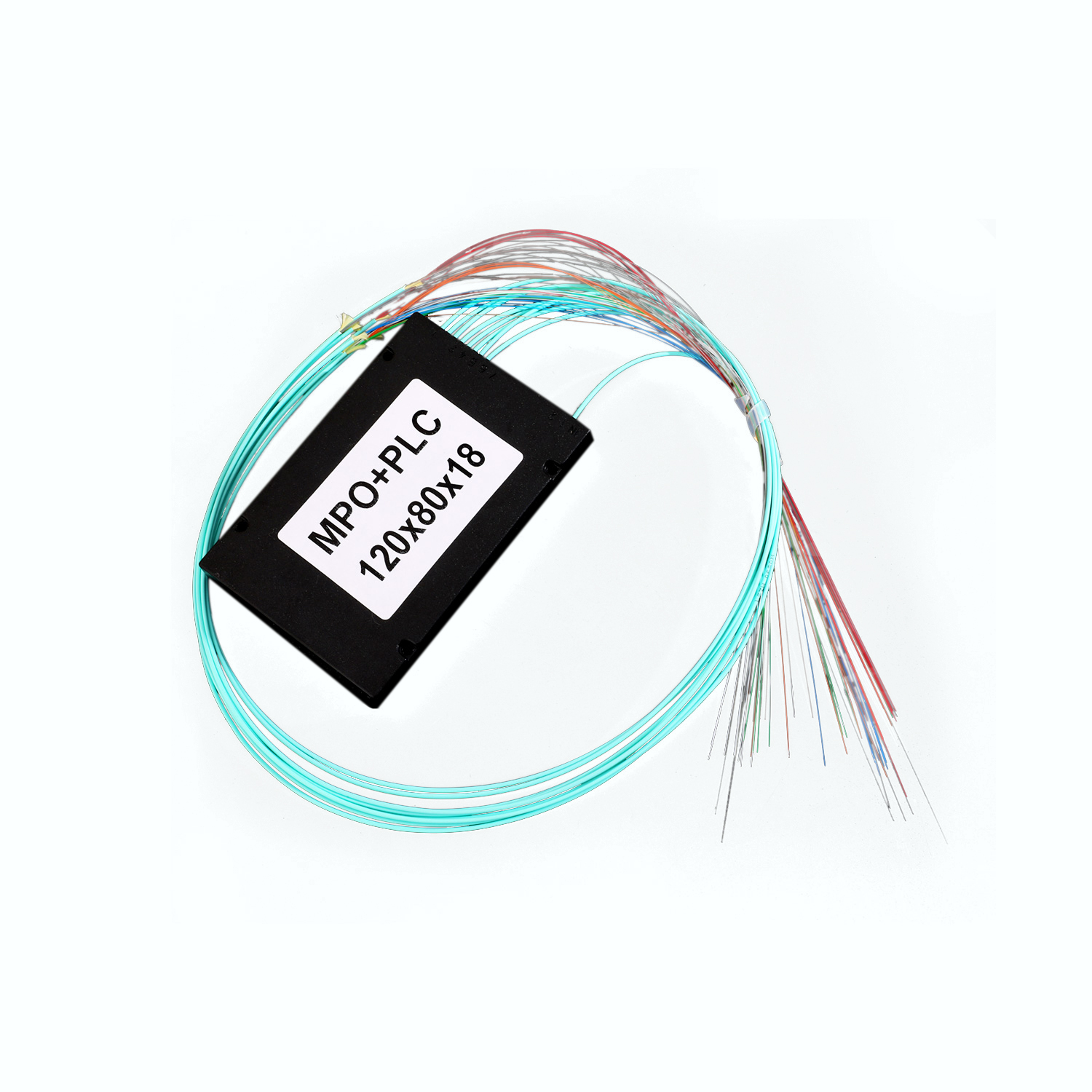

Planar light wave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It features small size, high reliability, wide operating wavelength range and good channel-to channel uniformity. Besides normal PLC splitters, other PLC Splitters such as terminal box type plc splitters, 2x1xN, 3x1xN plc splitters, MPO PLC splitters, AL mini plugin splitters are widely used in FTTX networks to realize optical signal power splitting as a low-cost solution.
PRODUCT SPECIFICATIONS

Low Insertion Loss

Low PDL (Polarization Dependent Loss)

Compact Design

Exceptional Reliability and Stability

Wide Operating Wavelength: 1260nm to 1650nm

Wide Operating Temperature: -40°C to 85°C

SCOPE OF APPLICATION

FTTX Systems

LAN, WAN and Metro Networks

Analog/Digital Passive Optical Networks

CATV Networks

Other Applications in Fiber Optic Systems

BESTSELLERS
Product Model Description

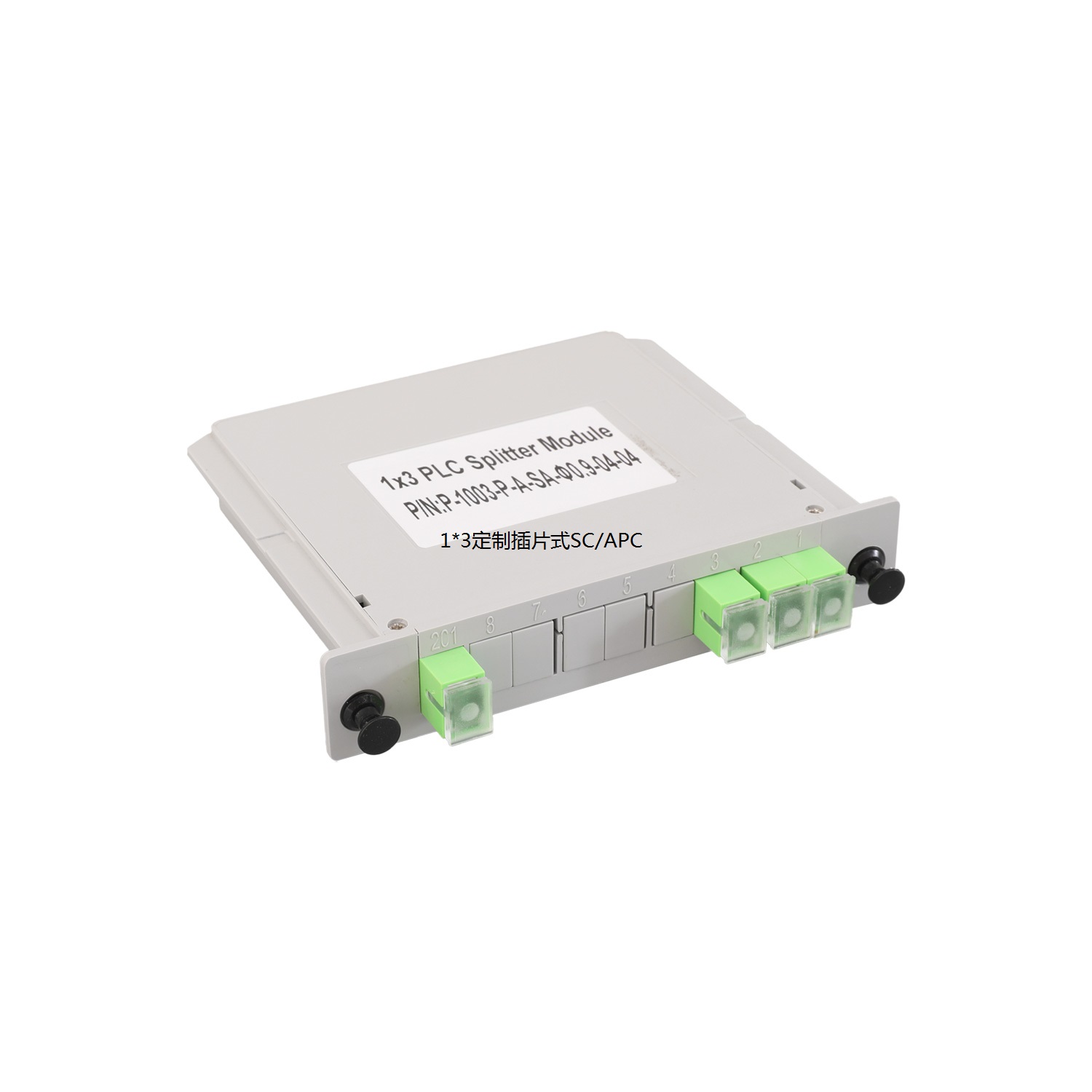

SS-1x2-SSSA-25A1 Plugin PLC Splitter 1 input 2.0mm 1m G657A1 4 output SC/APC

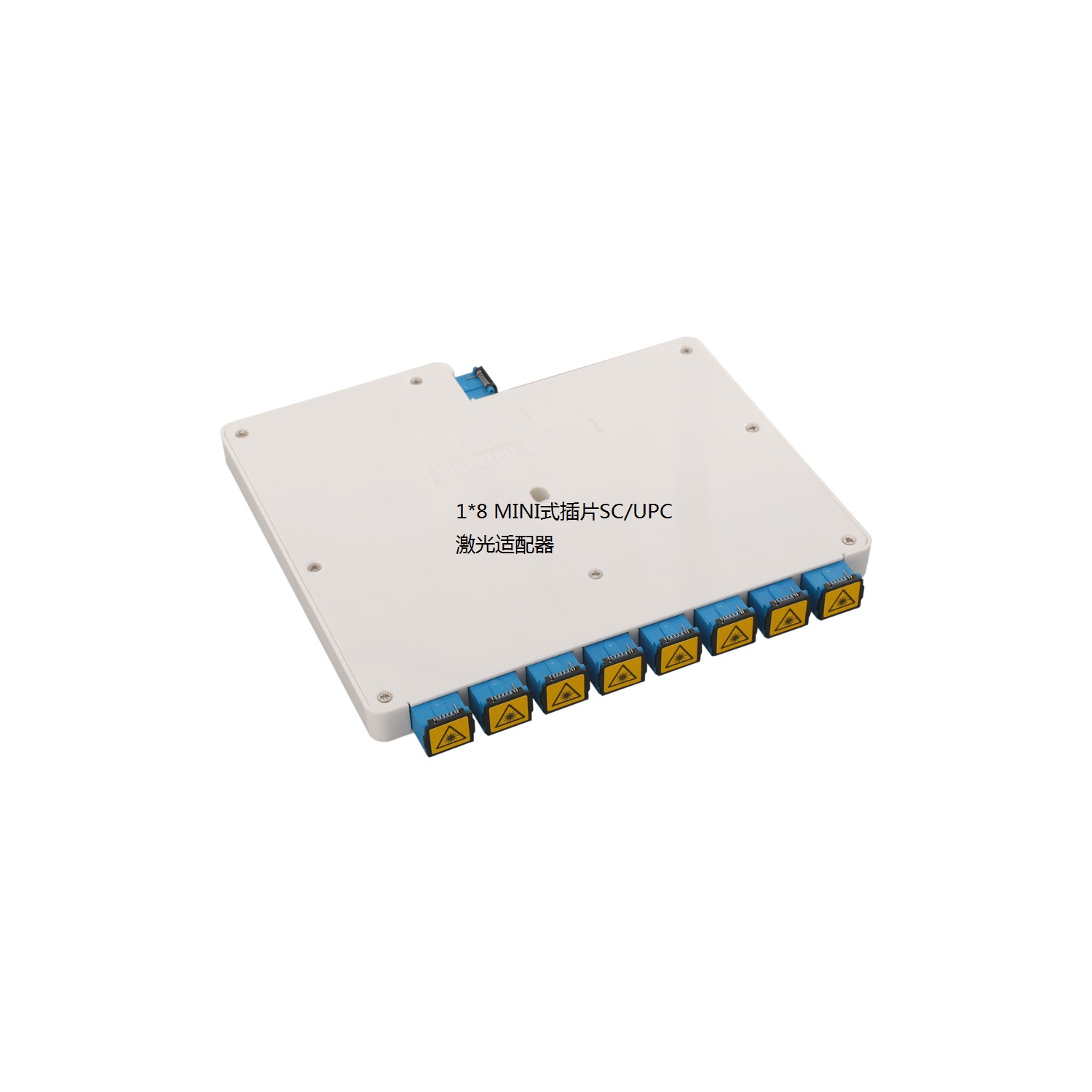

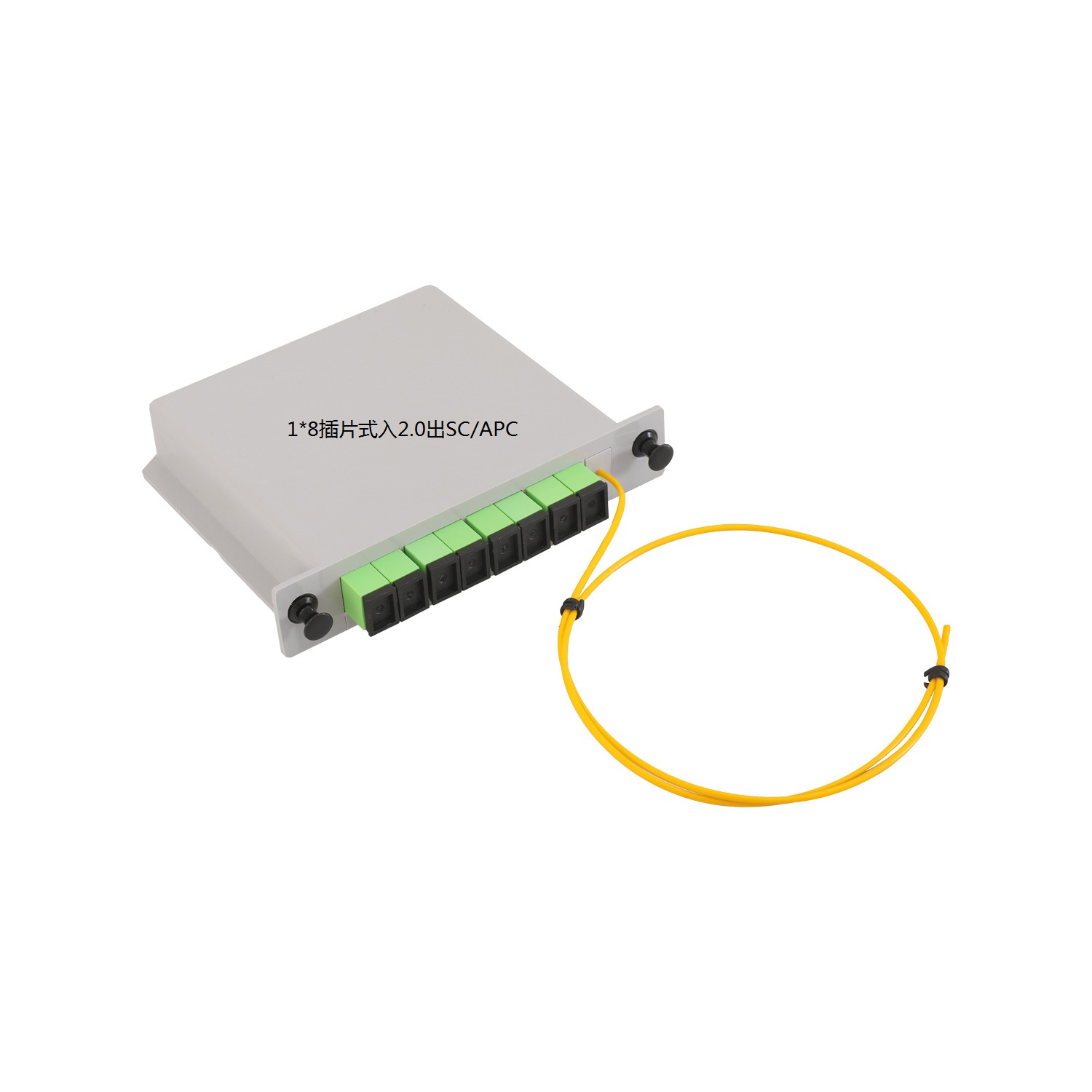

SS-1x8-PSA-20A1 Plugin PLC Splitter 1 input 2.0mm 1m G657A1 8 output SC/APC
SS-1x8-TSSU-A1 Terminal Box Type Cassette PLC Splitter 1 input 8 output SC/APC

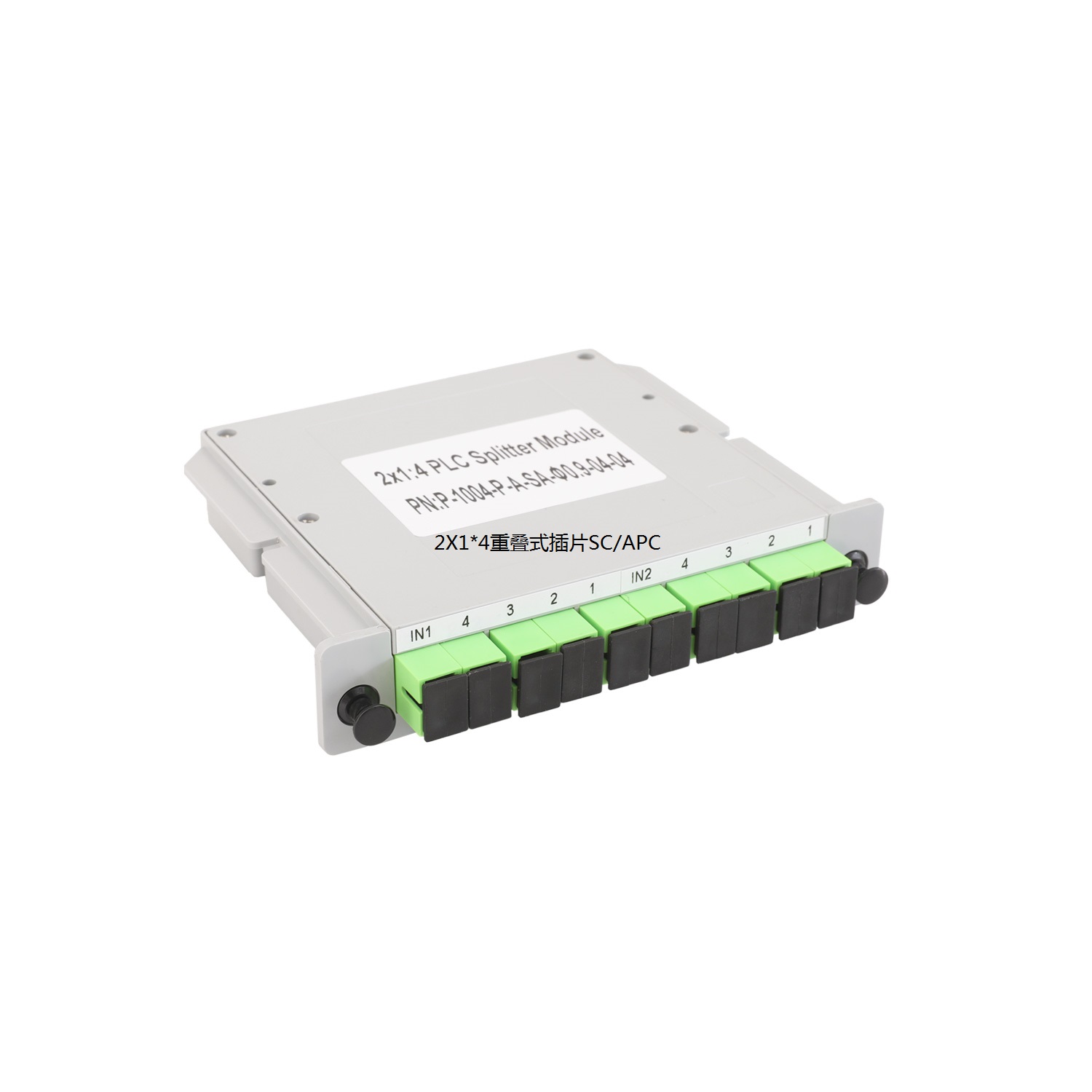

SS-2x1x4-PSSA-A1 Plugin PLC Splitter 2x 1 input 4 output SC/APC

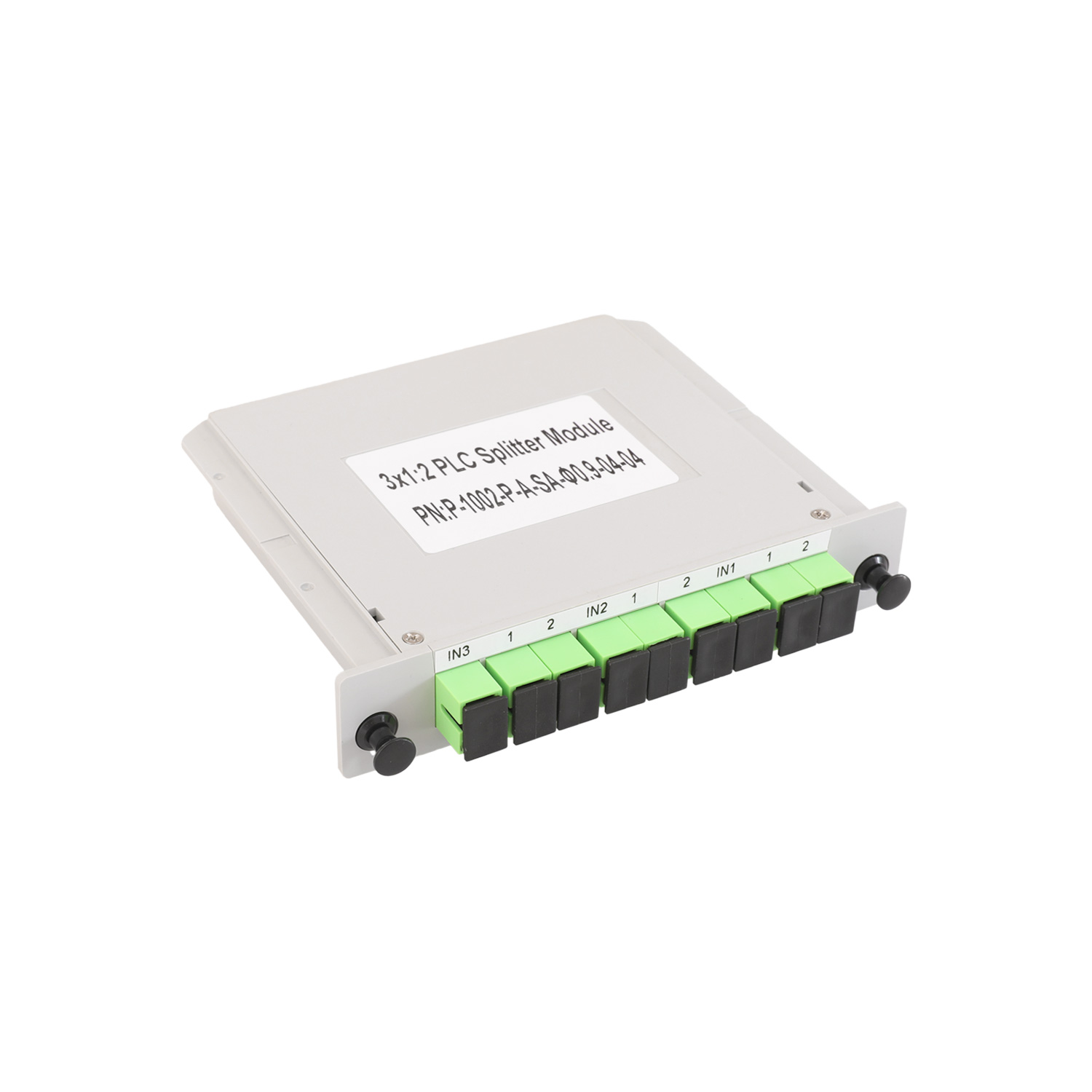

SS-3x1x2-PSSA-A1 Plugin PLC Splitter 3x 1 input 4 output SC/APC

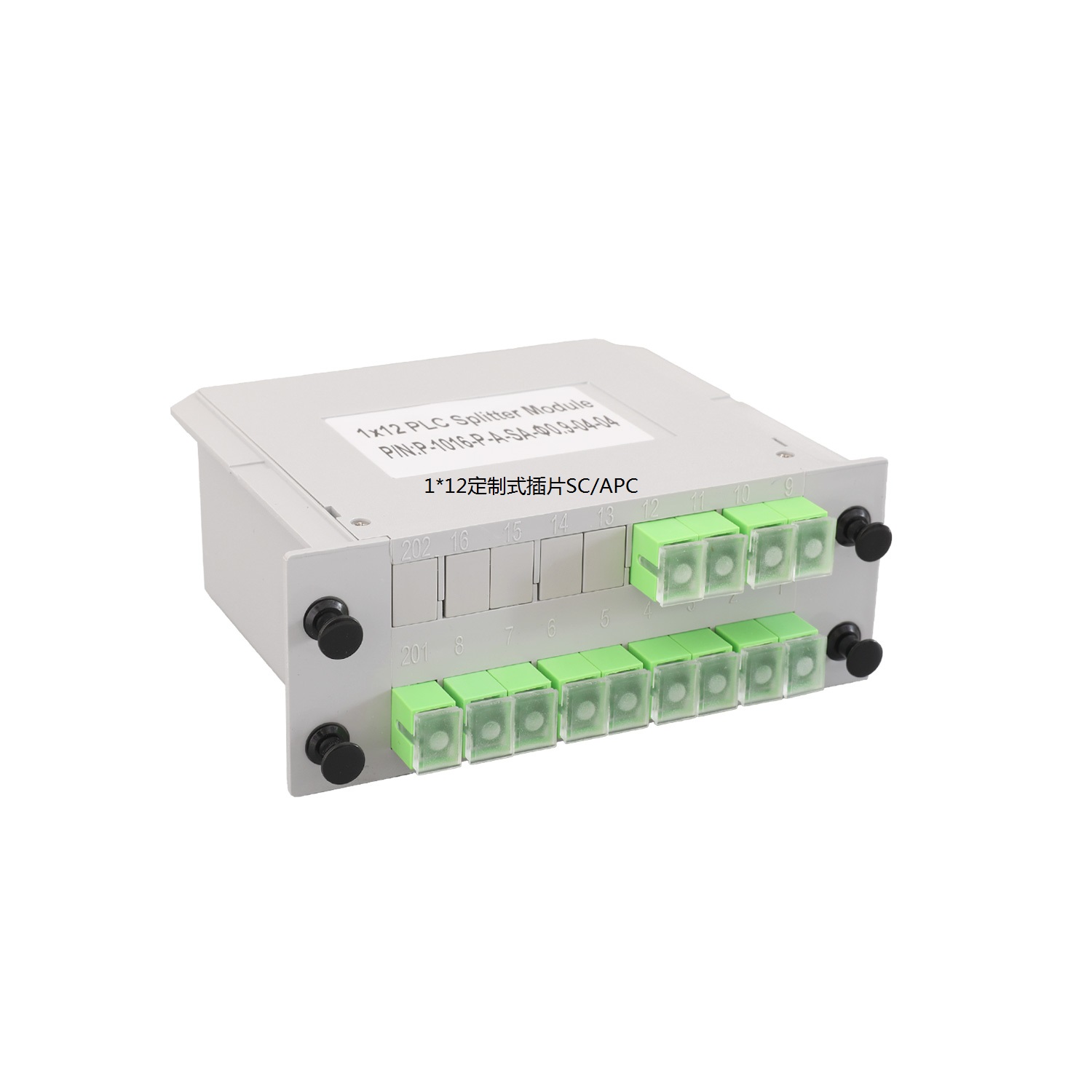

SS-1x12-PSSA-A1 Plugin PLC Splitter 1 input 12 output SC/APC

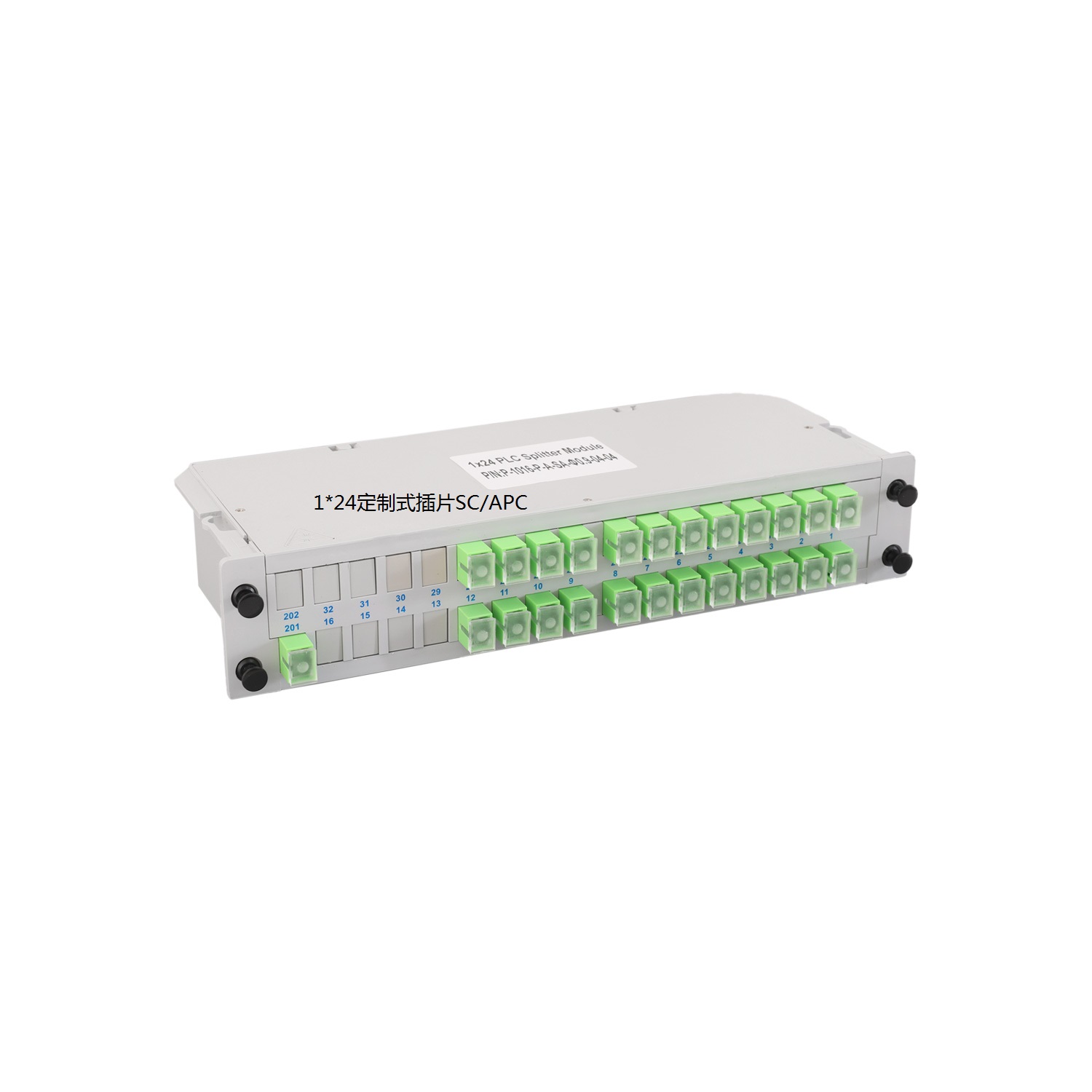

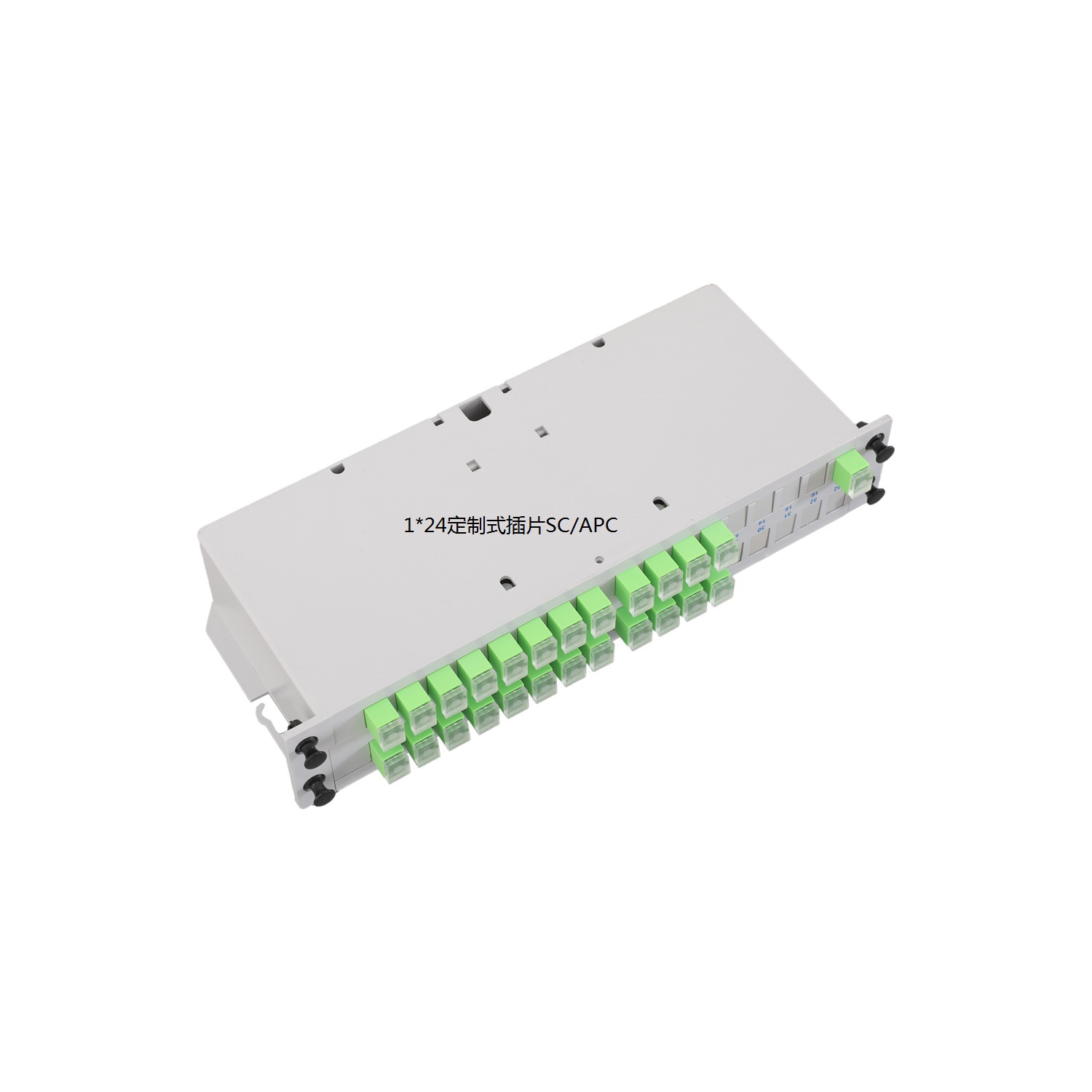

SS-1x24-PSSA-A1 Plugin PLC Splitter 1 input 24 output SC/APC

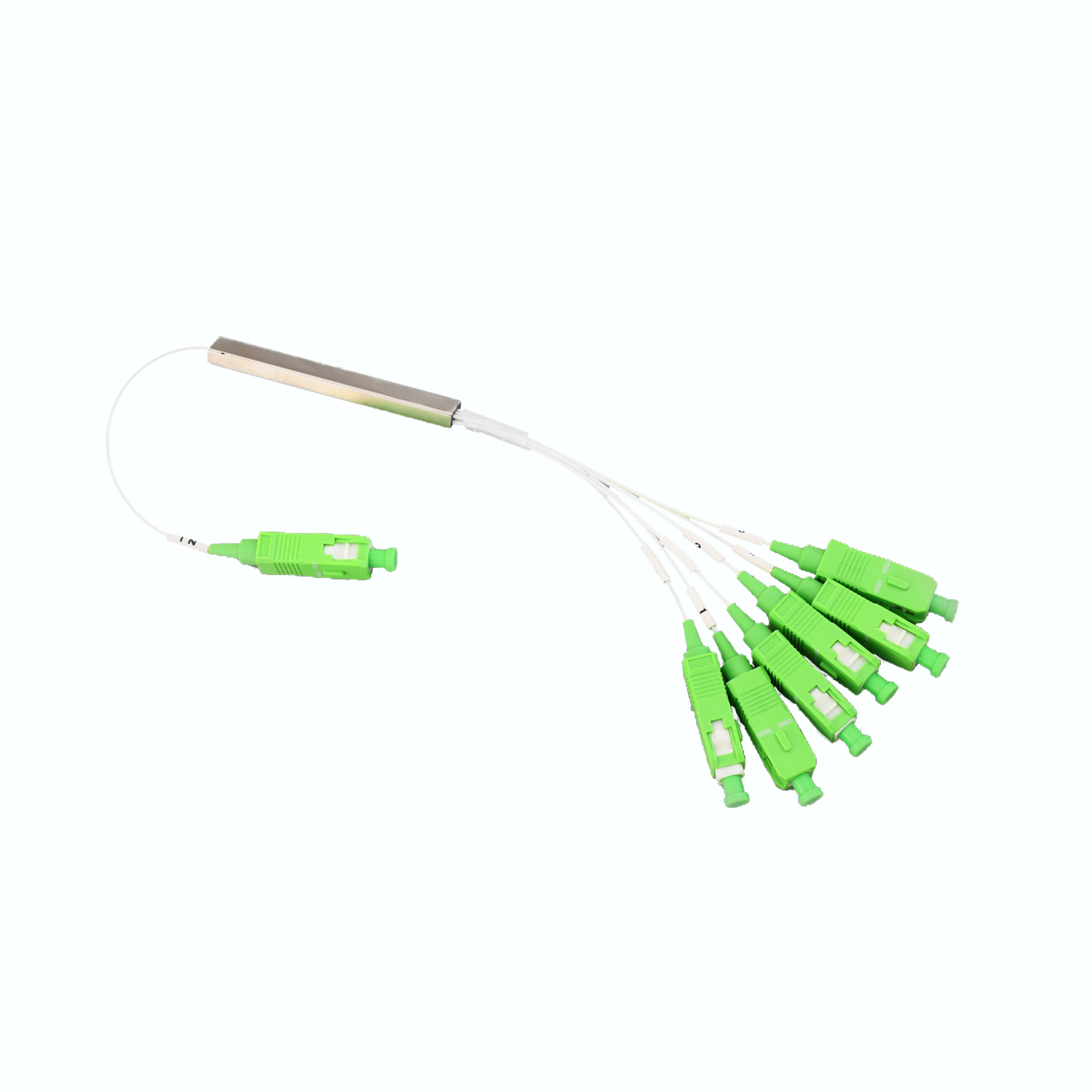

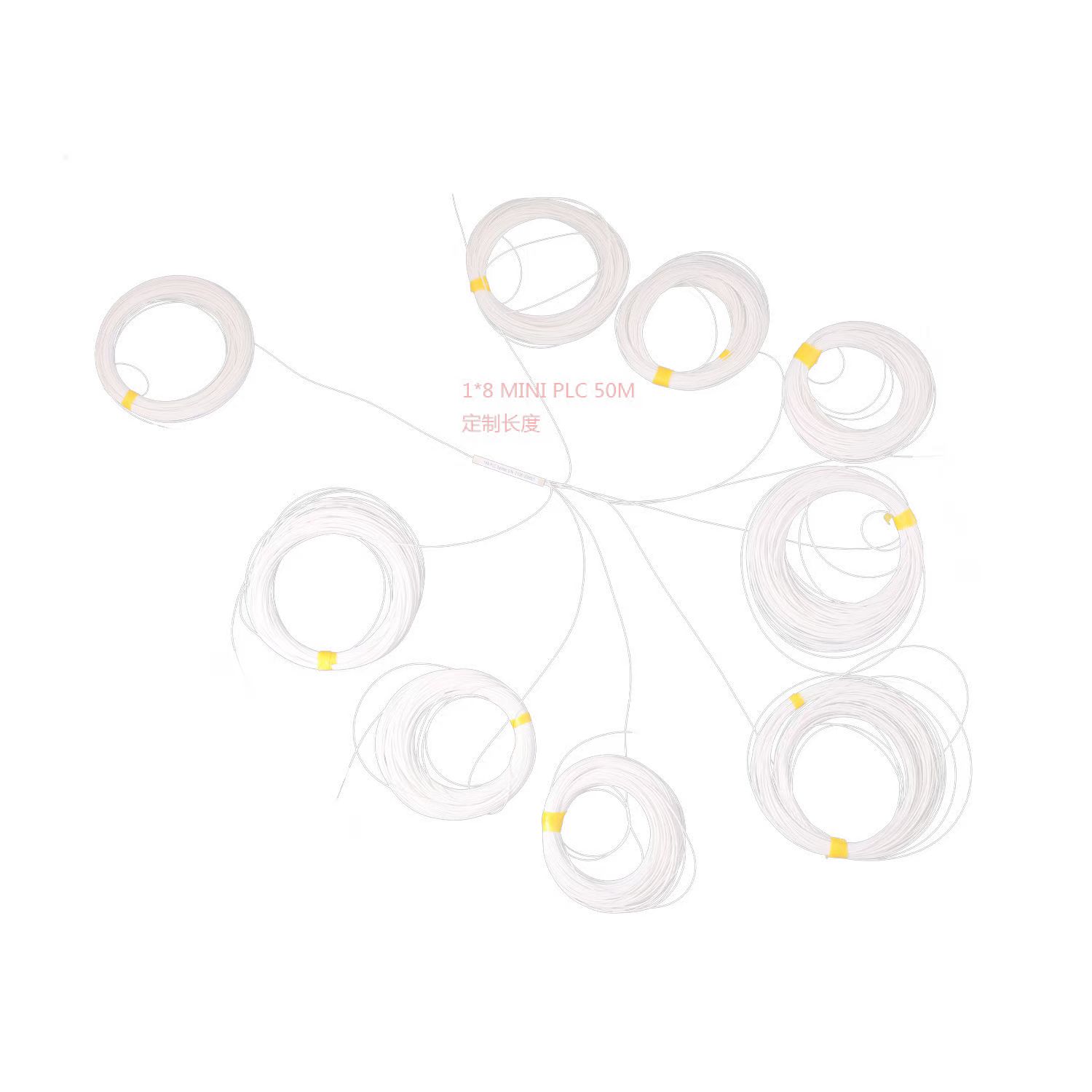

SS-1x8-S-2009A1 Mini Steel Tube 1 input 2.0mm 1m 8 output 0.9mm 1m G657A1

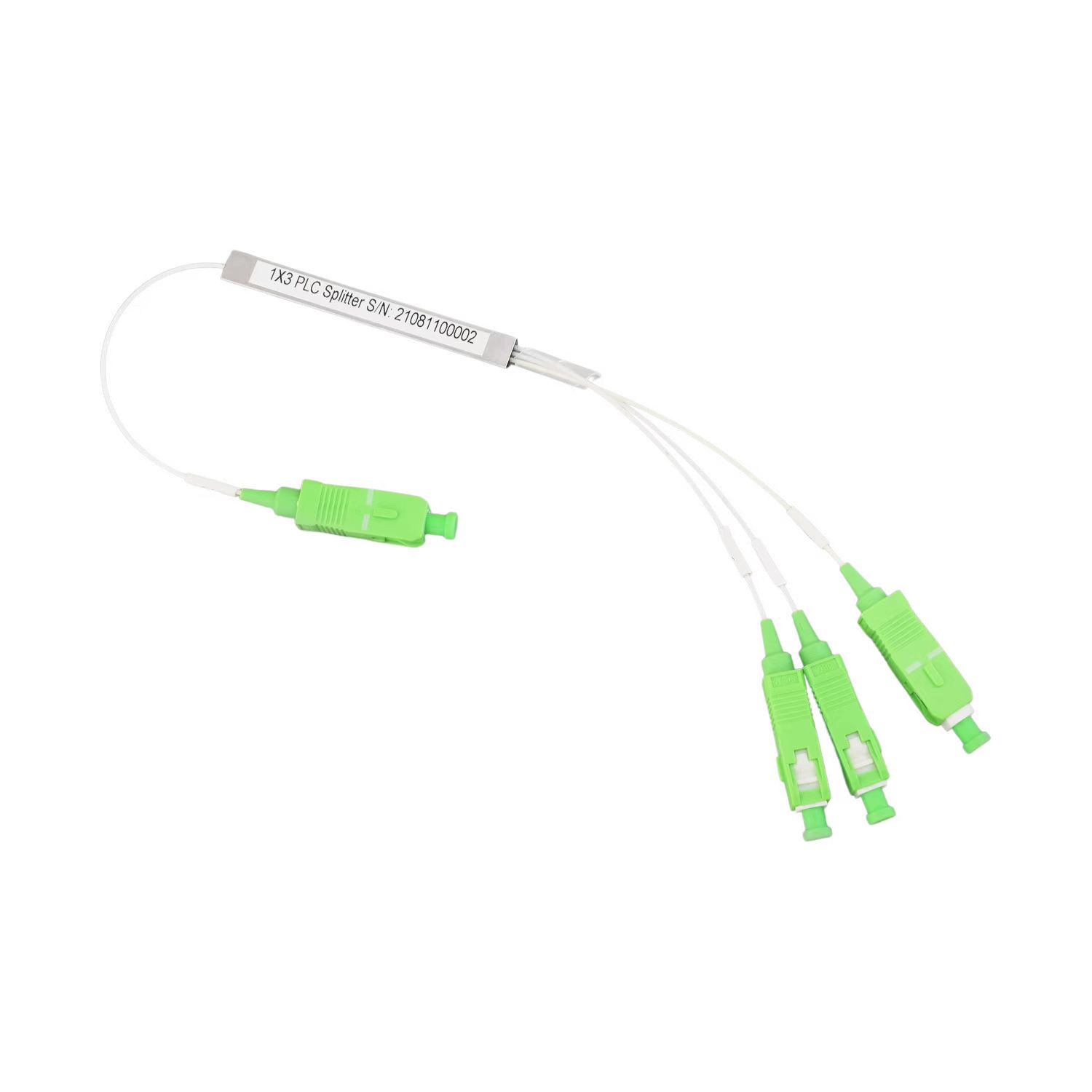

SS-1x3-AFFU-20A1 ABS PLC Splitter 1 input 3 output 2.0mm 1m G657A1 FC/UPC
SS-1x6-AFFU-20A1 ABS PLC Splitter 1 input 6 output 2.0mm 1m G657A1 FC/UPC
SS-1x10-AFFU-20A1 ABS PLC Splitter 1 input 10 output 2.0mm 1m G657A1 FC/UPC
COMPATIBLE
OEM&ODM SUPPORTED

OEM Manufacturer

SEESUO provides tailored OEM products based on clients' designs and specs.

ODM Manufacturer

SEESUO boastis rich R&D experence and top-notch production management.

Customized production

SEESUO provides talored product design,development, and flexible manufacturing.

R&D cooperation

SEESUO adapts swifly to market changes collaborating with customers in R&D.

AFTER-SALES SERVICE
The laser, golden finger, and lens of the optical module all come with a one-year warranty.
Learn more >
PRODUCT TESTING
  • Mechanical Durability Inspecti
    Assesses physical durability of splitter components to withstand handling, installation, and long-term use without performance degradation.
  • Environmental Stability Analys
    Tests performance under varying temperatures and humidity to ensure stable operation in diverse environmental conditions.
  • Wavelength Range Validation
    Verifies splitter performance across specified wavelength ranges to confirm compatibility with different wavelengths in fiber networks.
  • Return Loss Evaluation
    Evaluates reflection loss within the splitter, ensuring high return loss values to prevent signal disruption and enhance stability.
  • Uniformity Assessment
    Assesses signal uniformity across output channels to guarantee even power distribution, vital for consistent network performance.
  • Optical Insertion Loss Measure
    Measures insertion loss across splitter outputs to confirm minimal signal attenuation, ensuring efficient signal distribution.
Our certificate

  • GST

  • ISO

  • ROSH

  • CE

  • FCC

OUR FACTORY
COMMON PROBLEM

How to measure attenuation in optical fiber

+
-
Attenuation in optical fiber is measured using an optical power meter and a light source. The light source sends a signal through the fiber, and the power meter measures the output signal strength at the other end. The difference between input and ou

What is the loss of each port in plc splitter?

+
-
In a PLC (Planar Lightwave Circuit) splitter, each port incurs a typical insertion loss depending on the split ratio. For example, an ideal 1x2 splitter has around 3.5 dB loss per port, while a 1x4 splitter has about 7 dB, and a 1x8 splitter has arou

How does fiber optic cable splitter work

+
-
A fiber optic splitter divides a single optical signal into multiple outputs using internal waveguides. The incoming light is split evenly across output fibers, sharing signal power among them. PLC splitters enable one fiber to connect to multiple en
