• Enterprise Self-Built Data Centers
    This solution provides a high-availability, scalable cabling infrastructure for enterprise self-built data centers. Designed per TIA-942 standards, it integrates modular architecture, intelligent management systems, and future-ready technologies to support seamless upgrades from gigabit to 400G speeds. The design reduces total lifecycle costs while ensuring business continuity through 2N redundancy, DCIM platforms, and energy-efficient innovations.
    Project consultation
SOLUTION
网络拓图
SOLUTION ADVANTAGE
  • Ultra-High Availability
    Achieves 99.99% system uptime via 2N redundant design, dual-ring topology, and VRRP virtual routing. Core switches deploy dual-stack architecture, minimizing service interruptions by 82% in live environments.
  • Lifecycle Cost Optimization

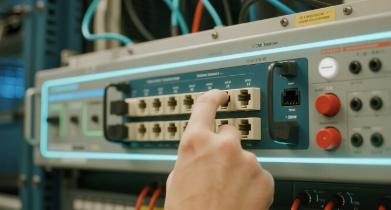

    Pre-terminated fiber systems reduce on-site deployment by 60%. Intelligent patch panels cut labor costs by 35%, while cold/hot aisle containment and POE++ technologies save over $15k annually in electricity.
  • Future-Proof Compatibility
    Modular cabling supports 400G/800G upgrades. OS2 single-mode fiber and AOC cables cover short/long-distance needs, with reserved CPO interfaces for next-gen silicon photonics.
  • Compliance & Security
    Meets Grade 2.0 security standards with dual-color coding for production/storage networks. RFID-enabled asset tracking reduces unauthorized access response time to <15 seconds.
TECHNICAL POINTS
  • Layered Redundant Architecture

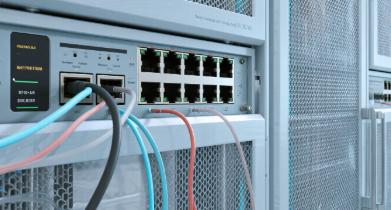

    Core layer uses S12700E stacked switches with Eth-Trunk aggregation. Access layer deploys 48-port modular switches, each monitored independently for millisecond-level failover.
  • High-Density Cabling System
    Horizontal cabling combines Cat6A copper (10Gbps/100m) and OM5 multimode fiber (SWDM4 support). Vertical cable managers ensure TIA-568.2-D compliant bend radius.
  • DCIM Integration
    Real-time monitoring via SNMPv3-enabled e-patch panels, environmental sensors, and asset management. Automated fault detection achieves 99.8% accuracy.
  • Dual-Bus Power Design
    2N UPS (300KVA x4) and 8-hour diesel backup ensure continuity. Dual PDUs with STS switches enable seamless power transitions for single-source devices.
  • Energy Efficiency
    Cold/hot aisle containment and U-level airflow management reduce PUE to <1.2. POE++ switches dynamically adjust power, cutting energy use by 30%.
  • Full-Chain Certification

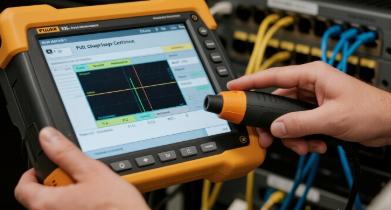

    Post-deployment testing with Fluke DSX-8000 validates NEXT, PS ACR, and return loss. TIA-1152 compliant reports guarantee performance compliance.
RELEVANT PRODUCTS
  • 1.25G Dual Fiber SFP

    Wavelength：850nm,1310nm, 1550nm

    Distance：550m,2km,10km,20km,40km,80km,120km,Customized

    Port Type：LC Port

    Learn more
    • Dual data-rate of 1.25Gbps/1.063Gbps operation
    • 850nm VCSEL laser transmitter and PIN photo detector for 550m transmission
    • 1310nm FP laser transmitter and PIN photodetector for 10km/20km transmission
    • 1550nm DFB laser transmitter and PIN photo detector for 80km transmission
    • 1550nm DFB laser transmitter and APD photo detector for 120km transmission
    • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
    • Hot-Pluggable
    • Digital Diagnostic Monitoring
    • Compatible with SONET OC-24-LR-1
    • Compatible with RoHS
    • +3.3V single power supply
    • Operating case temperature: Standard:  0 to +70°C
  • 1.25G BiDi SFP

    Wavelength：Tx1310nm/Rx1550nm, Tx1550nm/Rx1310nm,Tx1490nm/Rx1550nm,Tx1550nm/Rx1490nm, Tx1310nm/Rx1490nm,Tx1490nm/Rx1310nm

    Distance：2km,10km,20km,40km,80km,120km,Customized

    Port Type：LC Port, SC Port

    Learn more
    • Dual data-rate of 1.25Gbps/1.063Gbps operation
    • 1310nm FP laser transmitter and 1550nm PIN photo-detector for 10/20km transmission
      1310nm DFP laser transmitter and 1550nm PIN photo-detector for 40km transmission
      1550nm DFB laser transmitter and 1310nm PIN photo detector for10/20/40km transmission
      1490nm DFB laser transmitter and 1550nm APD photo detector for 80km/120km transmission
      1550nm DFB laser transmitter and 1490nm APD photo detector for 80km/120km transmission
    • Compliant with SFP MSA and SFF-8472
    • Hot-Pluggable
    • Digital Diagnostic Monitoring
    • Compatible with SONET OC-24-LR-1
    • Compatible with RoHS
    • +3.3V single power supply
    • Operating case temperature: Standard:  0 to +70°C
  • 2.5G Dual Fiber SFP

    Wavelength：850nm,1310nm, 1550nm

    Distance：550m,2km,10km,20km,40km,80km,120km,Customized

    Port Type：LC Port

    Learn more
    • Up to 2.67Gb/s Data Links
    • 850nm VCSEL laser transmitter for 300m transmission
    • 1310nm FB laser transmitter for 10km/20km transmission
    • 1310nm DFB laser transmitter for 40km transmission
    • 1550nm DFB laser transmitter for 40km/80km/120km transmission
    • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
    • Hot-Pluggable
    • Digital Diagnostic Monitoring
    • Compatible with RoHS
    • +3.3V single power supply
    • Operating case temperature: Standard:  0 to +70°C
  • 2.5G BiDi SFP

    Wavelength：Tx1310nm/Rx1550nm, Tx1550nm/Rx1310nm,Tx1490nm/Rx1550nm,Tx1550nm/Rx1490nm, Tx1310nm/Rx1490nm,Tx1490nm/Rx1310nm

    Distance：2km,10km,20km,40km,80km,120km,Customized

    Port Type：LC Port

    Learn more
    • Up to 2.67Gb/s Data Links
    • 1310nm FP laser transmitter and 1550nm PIN photo-detector for 10/20km transmission
    • 1310nm DFP laser transmitter and 1550nm PIN photo-detector for 40km transmission
    • 1550nm DFB laser transmitter and 1310nm PIN photo detector for10/20/40km transmission
    • 1490nm DFB laser transmitter and 1550nm APD photo detector for 80km/120km transmission
    • 1550nm DFB laser transmitter and 1490nm APD photo detector for 80km/120km transmission
    • Compliant with SFP MSA and SFF-8472
    • Hot-Pluggable
    • Digital Diagnostic Monitoring
    • Compatible with RoHS
    • +3.3V single power supply
    • Operating case temperature: Standard:  0 to +70°C
OUR CASE
ISP FTTX Date center School

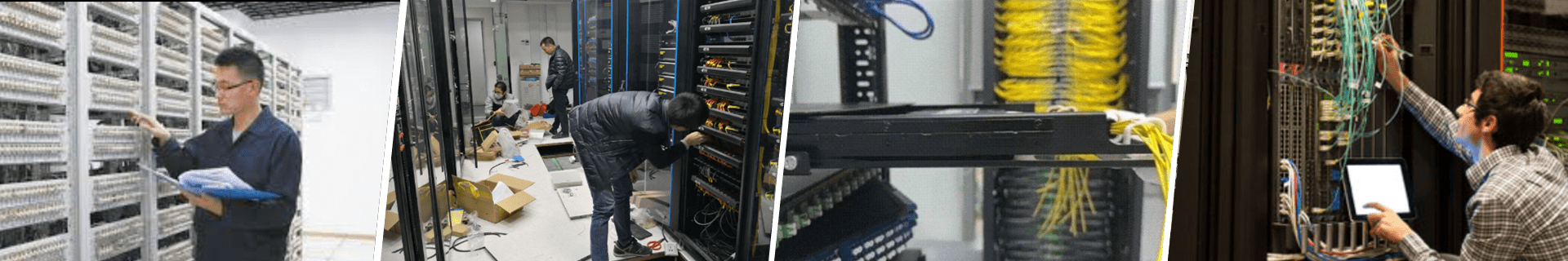

Our team
SEESUO combines professional knowledge with innovation to provide tailored technical support and advanced solutions for clients, meeting their needs and ensuring precision in network design, system optimization, and troubleshooting. The technical team at SEESUO consistently stays at the forefront of technology.
  • This solution delivers a future-ready data center foundation with optimized TCO, empowering enterprises to scale digitally with confidence.
Assessment & Planning
Evaluate 5-year IT growth to determine Tier III/IV classification. BIM-driven digital twins optimize cable pathways, reserving 30% rack space for expansion.

System Design
TIA-942-B compliant architecture with VXLAN-ready core switches and FC storage networks. Cable selection follows a 3-tier framework: OS2 for backbone, Cat6A for access, AOC for edge cases.

Deployment

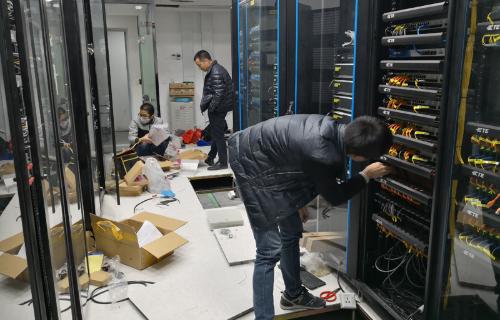

Install pre-terminated fiber trays with RFID tags. Execute 3-phase cutover: virtual validation → sandbox rehearsal → live migration. Port labeling follows GB/T 18236 standards.

Testing & Handover
Conduct 72-hour stability tests for VRRP/UPS performance. Deliver TIA-1152 reports, configuration archives, and DCIM training. Offer 2-year factory warranty with 7×24 support.
