• SEESUO leverages a decade of industrial network deployment expertise to deliver tailored network cabling solutions for large-scale industrial parks. Integrating proprietary intelligent cabling management systems and industrial-grade cable materials, the solution establishes a high-reliability network foundation covering the full lifecycle of "design-implementation-maintenance." It empowers enterprises to achieve seamless production data interconnection, remote equipment control, and AI-driven decision-making.
    Project consultation
SOLUTION
网络拓图
SOLUTION ADVANTAGE
  • Multi-Network Convergence, Unified Infrastructure
    Supports wired, wireless, and IoT network integration, accommodating industrial control, video surveillance, and office systems. SEESUO’s proprietary intelligent gateways enable dynamic traffic prioritization, ensuring critical applications (e.g., AGV navigation) operate without latency.
  • Ultra-Low Latency & High Bandwidth
    Utilizes SEESUO-customized single-mode fiber and 10 Gigabit Ethernet technology, delivering end-to-end latency below 1ms for 4K video streams and industrial sensor clusters. Core switches feature SEESUO’s self-developed chips with 200Mpps packet forwarding rates, guaranteeing zero packet loss.
  • AI-Driven Operations, Reduced TCO
    Integrates SEESUO’s Smart Network Management System (SNMS) for real-time monitoring of cable health, port utilization, and fault detection. AI-powered predictive maintenance reduced operational costs by 40% in a leading automotive manufacturing park, with fault response times under 15 minutes.
  • Future-Ready Modular Architecture
    Pre-integrates 5G-A/6G and Time-Sensitive Networking (TSN) interfaces, supporting Network Function Virtualization (NFV). SEESUO provides compatibility certification to ensure seamless upgrades to future standards, eliminating redundant investments.
TECHNICAL POINTS

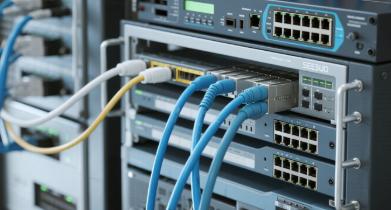

  • Hierarchical Cabling Design
    Core layer employs SEESUO 400G switches with dual-redundant ring topology (99.999% availability). Aggregation layer uses 25G/100G switches supporting VXLAN virtualization. Access layer deploys PoE++ switches (90W max per port) for IP phones, wireless APs, and IoT gateways.
  • Optimized Fiber Transmission
    Backbone links use SEESUO G.657.B3 bend-insensitive fiber (500m loss-free transmission, ≤0.2dB/km attenuation). Horizontal cabling adopts SEESUO LC-UPC low-loss patch cords. Explosion-proof fiber enclosures (IP68 rated) are available for hazardous areas like chemical plants.
  • Backbone links use SEESUO G.657.B3 bend-insensitive fiber (500m loss-free transmission, ≤0.2dB/km attenuation). Horizontal cabling adopts SEESUO LC-UPC low-loss patch cords. Explosion-proof fiber enclosures (IP68 rated) are available for hazardous areas like chemical plants.

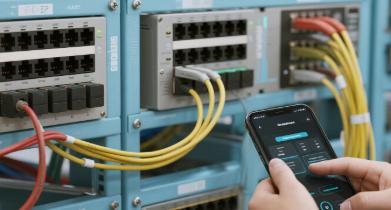

    SEESUO Electronic Patch Panels (EPP) provide real-time port mapping and 3D BIM visualization. NFC-enabled fault localization via mobile scanning reduced troubleshooting time by 60% in an electronics factory.

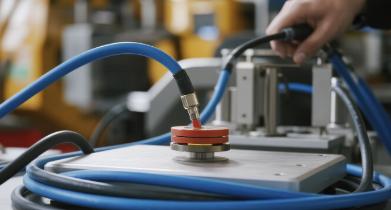

  • Industrial-Grade Durability
    Cables operate from -40℃ to 70℃, with dual-shielded variants (≥60dB immunity) for high-EMI zones. Fiber strands withstand 200N tension, passing vibration tests for heavy machinery environments.

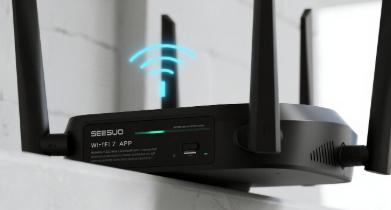

  • Wired-Wireless Synergy
    SEESUO Wi-Fi 7 APs support 160MHz channels and MU-MIMO (512 concurrent users). Adaptive Radio Enhancement (AER) optimizes coverage dynamically. Dedicated 5GHz backhaul avoids interference with industrial equipment.
  • Sustainable Design
    Liquid-cooled core devices achieve ≤1.2 PUE. Auto-sleep mode cuts power for idle access ports. Cables use 30% recycled polyethylene (RoHS compliant), aligning with carbon neutrality goals.
RELEVANT PRODUCTS
  • 1.25G Dual Fiber SFP

    Wavelength:850nm,1310nm, 1550nm

    Distance:550m,2km,10km,20km,40km,80km,120km,Customized

    Port Type:LC Port

    Learn more
    • Dual data-rate of 1.25Gbps/1.063Gbps operation
    • 850nm VCSEL laser transmitter and PIN photo detector for 550m transmission
    • 1310nm FP laser transmitter and PIN photodetector for 10km/20km transmission
    • 1550nm DFB laser transmitter and PIN photo detector for 80km transmission
    • 1550nm DFB laser transmitter and APD photo detector for 120km transmission
    • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
    • Hot-Pluggable
    • Digital Diagnostic Monitoring
    • Compatible with SONET OC-24-LR-1
    • Compatible with RoHS
    • +3.3V single power supply
    • Operating case temperature: Standard:  0 to +70°C
  • 1.25G BiDi SFP

    Wavelength:Tx1310nm/Rx1550nm, Tx1550nm/Rx1310nm,Tx1490nm/Rx1550nm,Tx1550nm/Rx1490nm, Tx1310nm/Rx1490nm,Tx1490nm/Rx1310nm

    Distance:2km,10km,20km,40km,80km,120km,Customized

    Port Type:LC Port, SC Port

    Learn more
    • Dual data-rate of 1.25Gbps/1.063Gbps operation
    • 1310nm FP laser transmitter and 1550nm PIN photo-detector for 10/20km transmission
      1310nm DFP laser transmitter and 1550nm PIN photo-detector for 40km transmission
      1550nm DFB laser transmitter and 1310nm PIN photo detector for10/20/40km transmission
      1490nm DFB laser transmitter and 1550nm APD photo detector for 80km/120km transmission
      1550nm DFB laser transmitter and 1490nm APD photo detector for 80km/120km transmission
    • Compliant with SFP MSA and SFF-8472
    • Hot-Pluggable
    • Digital Diagnostic Monitoring
    • Compatible with SONET OC-24-LR-1
    • Compatible with RoHS
    • +3.3V single power supply
    • Operating case temperature: Standard:  0 to +70°C
  • 2.5G Dual Fiber SFP

    Wavelength:850nm,1310nm, 1550nm

    Distance:550m,2km,10km,20km,40km,80km,120km,Customized

    Port Type:LC Port

    Learn more
    • Up to 2.67Gb/s Data Links
    • 850nm VCSEL laser transmitter for 300m transmission
    • 1310nm FB laser transmitter for 10km/20km transmission
    • 1310nm DFB laser transmitter for 40km transmission
    • 1550nm DFB laser transmitter for 40km/80km/120km transmission
    • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
    • Hot-Pluggable
    • Digital Diagnostic Monitoring
    • Compatible with RoHS
    • +3.3V single power supply
    • Operating case temperature: Standard:  0 to +70°C
  • 2.5G BiDi SFP

    Wavelength:Tx1310nm/Rx1550nm, Tx1550nm/Rx1310nm,Tx1490nm/Rx1550nm,Tx1550nm/Rx1490nm, Tx1310nm/Rx1490nm,Tx1490nm/Rx1310nm

    Distance:2km,10km,20km,40km,80km,120km,Customized

    Port Type:LC Port

    Learn more
    • Up to 2.67Gb/s Data Links
    • 1310nm FP laser transmitter and 1550nm PIN photo-detector for 10/20km transmission
    • 1310nm DFP laser transmitter and 1550nm PIN photo-detector for 40km transmission
    • 1550nm DFB laser transmitter and 1310nm PIN photo detector for10/20/40km transmission
    • 1490nm DFB laser transmitter and 1550nm APD photo detector for 80km/120km transmission
    • 1550nm DFB laser transmitter and 1490nm APD photo detector for 80km/120km transmission
    • Compliant with SFP MSA and SFF-8472
    • Hot-Pluggable
    • Digital Diagnostic Monitoring
    • Compatible with RoHS
    • +3.3V single power supply
    • Operating case temperature: Standard:  0 to +70°C
OUR CASE
Our team
SEESUO combines professional knowledge with innovation to provide tailored technical support and advanced solutions for clients, meeting their needs and ensuring precision in network design, system optimization, and troubleshooting. The technical team at SEESUO consistently stays at the forefront of technology.
  • The Large-Scale Industrial Parks network cabling solution is a streamlined implementation framework focusing on three core dimensions: hierarchical architecture design (core-aggregation-access layers), industrial-grade infrastructure deployment (fiber/cable, equipment hardening), and intelligent management integration (AI-driven monitoring, predictive maintenance).
Needs Assessment & Architecture Design
SEESUO engineers model traffic flows across production, logistics, and security systems. AutoCAD-generated cabling plans detail equipment rooms, conduits, and endpoints. Bill of Materials (BOM) specifies cable types, lengths, and switch densities.

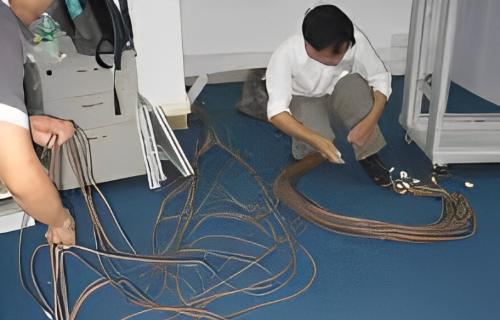

Material Deployment
SEESUO UL-certified 400G switches and ODF frames form the backbone. Hybrid bridge/trench cabling reserves 20% redundancy. IP67-rated industrial panels ensure dust/water resistance.

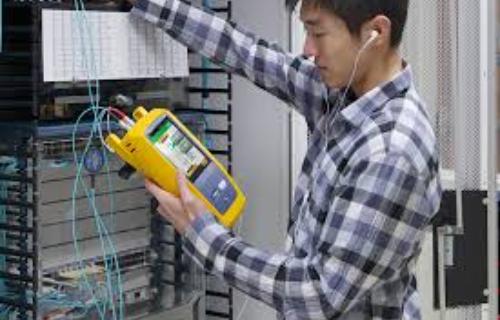

Testing & Validation
SEESUO-calibrated Fluke testers verify fiber loss (≤0.35dB/km). 72-hour stress tests simulate peak loads and failover scenarios. Deliverables include cabling maps, test reports, and SEESUO maintenance guides.

System Launch & Training
SNMS deployment enables topology discovery, traffic analytics, and alerts. Training covers EPP operation, fault diagnosis, and upgrades. 3-year warranty includes 24/7 SEESUO spare parts replacement.

CONSULTATION PROCESS
01
Demand consultation
Describe business needs and submit demand consultation
02
Initial communication
Answer questions about needs, align core demands, and determine cooperation intentions
03
Solution Exchange
Conduct online or offline discussions on relevant plans
04
Business Process
After the plan is finalized, the business process begins
TECHNICAL SUPPORT
Get solutions or consultation from the technical team.
