• Residential FTTH (Fiber to the Home) Deployment
    This rural FTTH solution leverages China's GB 55038-2025 policy to deploy a dual-layer ‘fiber-to-home + home network optimization’ architecture. It achieves gigabit coverage across residential areas and >95% household penetration of 300M+ bandwidth. Integrating single-mode fiber, Wi-Fi 6, and FTTR technologies, the design adapts to diverse building structures. Shared pipeline infrastructure and resilient smart O&M reliably support smart home, remote education, and HD media applications.
    Project consultation
SOLUTION
网络拓图
SOLUTION ADVANTAGE
  • Cost Efficiency
    A"fiber-dominant, wireless-auxiliary" strategy reduces per-household construction costs by 50%. Government-enterprise collaboration achieves zero installation fees, shortening payback periods by 3-5 years versus traditional methods.
  • Rapid Scalable Coverage
    Single-mode fiber enables 3km non-repeater transmission, with single base stations covering 500 households. Community networks activate within 7 days—3x faster than traditional cabling.
  • High Reliability
    Dual-link backup and intelligent switching ensure 99.99% uptime. Wide-temperature devices (-20℃ to 60℃) adapt to residential environments, with network fault rates below 0.3%.
  • Scalable Upgrade Capacity
    Reserved 5G/satellite interfaces support smooth bandwidth expansion from 300M to 10G. FTTR achieves full-house gigabit coverage with dynamic bandwidth adjustment under 20 seconds.
TECHNICAL POINTS
  • Hybrid Networking Architecture
    Community trunks use FTTH (300M+), corridors deploy Wi-Fi 6 dual-band APs (150M), and households extend coverage via FTTR, forming a three-tier system. Wi-Fi 6协同FTTR achieves 1ms ultra-low latency across all rooms.
  • Disaster-Resilient Design
    Outdoor fiber joints use dual-layer sealing, overhead lines have anti-rodent spikes and height warnings, and base stations include UPS and lightning protection. Network interruptions last under 1 hour.

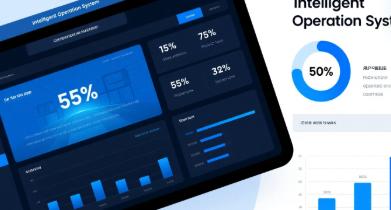

  • Intelligent Operation System
    AI platforms monitor 15 metrics including optical attenuation and packet loss. Users resolve 95% of issues via a self-service APP, reducing OPEX by 50%.
  • Shared Infrastructure Model
    Reusing power pipelines and broadcast ducts saves 28,000 yuan/km in line costs. Base station co-construction rates reach 85%.
  • Energy-Saving Solutions
    Solar + mains dual-mode power supply reduces daily consumption to 0.6 kWh, saving 100,000 yuan annually.
  • Security Protection
    Quantum encryption modules pass Level 3 cybersecurity certification, blocking network attacks multiple times.

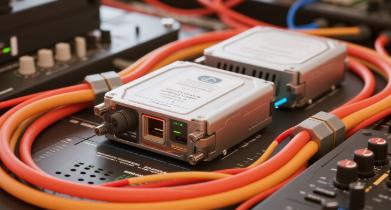

RELEVANT PRODUCTS
  • 1.25G Dual Fiber SFP

    Wavelength：850nm,1310nm, 1550nm

    Distance：550m,2km,10km,20km,40km,80km,120km,Customized

    Port Type：LC Port

    Learn more
    • Dual data-rate of 1.25Gbps/1.063Gbps operation
    • 850nm VCSEL laser transmitter and PIN photo detector for 550m transmission
    • 1310nm FP laser transmitter and PIN photodetector for 10km/20km transmission
    • 1550nm DFB laser transmitter and PIN photo detector for 80km transmission
    • 1550nm DFB laser transmitter and APD photo detector for 120km transmission
    • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
    • Hot-Pluggable
    • Digital Diagnostic Monitoring
    • Compatible with SONET OC-24-LR-1
    • Compatible with RoHS
    • +3.3V single power supply
    • Operating case temperature: Standard:  0 to +70°C
  • 1.25G BiDi SFP

    Wavelength：Tx1310nm/Rx1550nm, Tx1550nm/Rx1310nm,Tx1490nm/Rx1550nm,Tx1550nm/Rx1490nm, Tx1310nm/Rx1490nm,Tx1490nm/Rx1310nm

    Distance：2km,10km,20km,40km,80km,120km,Customized

    Port Type：LC Port, SC Port

    Learn more
    • Dual data-rate of 1.25Gbps/1.063Gbps operation
    • 1310nm FP laser transmitter and 1550nm PIN photo-detector for 10/20km transmission
      1310nm DFP laser transmitter and 1550nm PIN photo-detector for 40km transmission
      1550nm DFB laser transmitter and 1310nm PIN photo detector for10/20/40km transmission
      1490nm DFB laser transmitter and 1550nm APD photo detector for 80km/120km transmission
      1550nm DFB laser transmitter and 1490nm APD photo detector for 80km/120km transmission
    • Compliant with SFP MSA and SFF-8472
    • Hot-Pluggable
    • Digital Diagnostic Monitoring
    • Compatible with SONET OC-24-LR-1
    • Compatible with RoHS
    • +3.3V single power supply
    • Operating case temperature: Standard:  0 to +70°C
OUR CASE
ISP FTTX Date center School
Our team
SEESUO combines professional knowledge with innovation to provide tailored technical support and advanced solutions for clients, meeting their needs and ensuring precision in network design, system optimization, and troubleshooting. The technical team at SEESUO consistently stays at the forefront of technology.
  • This solution effectively addresses rural residential broadband challenges, providing a scalable infrastructure model for smart community development.
Demand Assessment
Collaborate with property management to map 3D building layouts, marking weak electric wells and ducts per GB 55038-2025 standards.Survey bandwidth demand, prioritizing high-traffic users like smart home and 4K video consumers. 40% of households use 4K services.

Infrastructure Construction

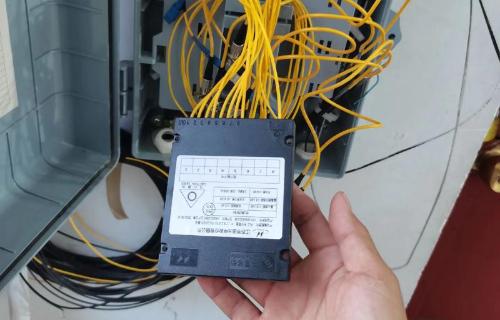

Lay 6mm low-loss single-mode fiber along community ducts, deploy Wi-Fi 6 APs in corridors, and pre-bury optical fiber to each room.Install secondary splitters per building, with optical boxes at ≥1.8m height. Equipment waterproof ratings reach IP65.

Intelligent System Deployment
Install network management platforms and user APPs, commissioning 50 devices. Optimize Wi-Fi 6.Train residents on device connections and self-troubleshooting. Post-training satisfaction rises to 92%.

Validation & Optimization
Conduct three speed tests, requiring 95% of users to meet bandwidth standards. First-time acceptance pass rate reaches 98%.Establish 24/7 support with on-site troubleshooting for coverage gaps. All optimizations complete within 48 hours.
