• Small and Medium-Sized Industrial Parks
    This solution focuses on delivering efficient, reliable enterprise network cabling services tailored for small and medium-sized industrial parks. It aims to establish a digital infrastructure that supports rapid business development through modular network architecture design, cost-effective cable deployment, and integrated intelligent management systems. The solution balances initial investment costs with future technology upgrades, providing a stable, secure, and easy-to-maintain network environment to empower digital transformation while reducing lifecycle operational expenses.
    Project consultation
SOLUTION
网络拓图
SOLUTION ADVANTAGE
  • High Performance and Stability
    Adopting a hierarchical network architecture (core-aggregation-access) with link aggregation and Spanning Tree Protocol (MSTP) ensures gigabit-level data transmission without congestion. Redundant link design prevents single points of failure, guaranteeing business continuity.
  • Total Lifecycle Cost Control
    A hybrid copper-fiber cabling strategy balances performance and budget. Modular equipment selection reduces replacement costs, while intelligent power management cuts annual electricity expenses by over 30%.
  • Seamless Scalability
    Reserved port density and stacking technology interfaces support future 10G network upgrades. VLAN and subnet segmentation adapt flexibly to departmental adjustments, avoiding large-scale re-cabling.
  • Multi-Layered Security Protection
    Integrated 802.1X authentication, DHCP Snooping, and port isolation prevent unauthorized access. IPSec VPN and ACL access control ensure encrypted cross-park data transmission, complying with Level 3 cybersecurity standards.
TECHNICAL POINTS
  • Hierarchical Network Architecture Design
    Core layer deploys two stacked switches, aggregation layer uses Eth-Trunk link aggregation, and access layer applies VLAN segmentation per department, achieving three-tier logical isolation and two-tier physical redundancy.

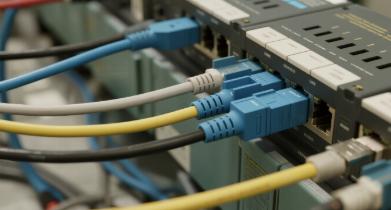

  • Cabling Deployment Standards
    Horizontal cabling uses Category 6 unshielded twisted pair (supporting 10Gbps), backbone uses OM3 multimode fiber. Patch panel termination follows TIA-568-C standards, ensuring channel attenuation ≤0.2dB/km.

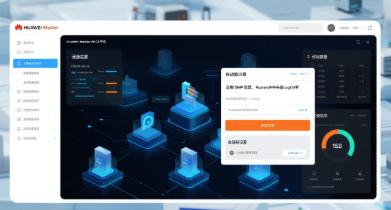

  • Intelligent Network Management
    Deploy Huawei iMaster NCE platform for topology visualization, traffic monitoring, and automated alerts. Supports SNMP protocol and Syslog centralized log analysis.
  • Security Strategy Implementation
    Configure ACL rules on core switches to block R&D department internet access. Enable NAT Outbound and IPSec VPN on出口 routers for secure public network access and branch interconnection.

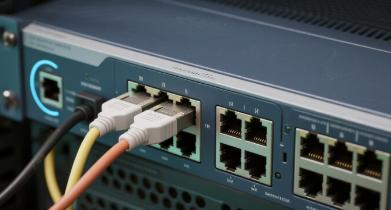

  • Energy-Saving Technologies
    Switches comply with 802.3az Energy Efficient Ethernet standards. POE devices support dynamic power adjustment. Optimized rack layout and airflow design reduce thermal buildup.
  • Standardized Construction Process

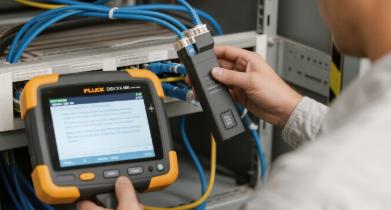

    Follow GB50311-2016 cabling norms, with 15% redundant capacity in conduit design. Reserve 2 spare fibers per 24-core cable. Post-installation certification uses Fluke DSX-8000 tester.
RELEVANT PRODUCTS
  • 1.25G Dual Fiber SFP

    Wavelength：850nm,1310nm, 1550nm

    Distance：550m,2km,10km,20km,40km,80km,120km,Customized

    Port Type：LC Port

    Learn more
    • Dual data-rate of 1.25Gbps/1.063Gbps operation
    • 850nm VCSEL laser transmitter and PIN photo detector for 550m transmission
    • 1310nm FP laser transmitter and PIN photodetector for 10km/20km transmission
    • 1550nm DFB laser transmitter and PIN photo detector for 80km transmission
    • 1550nm DFB laser transmitter and APD photo detector for 120km transmission
    • Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
    • Hot-Pluggable
    • Digital Diagnostic Monitoring
    • Compatible with SONET OC-24-LR-1
    • Compatible with RoHS
    • +3.3V single power supply
    • Operating case temperature: Standard:  0 to +70°C
  • 1.25G BiDi SFP

    Wavelength：Tx1310nm/Rx1550nm, Tx1550nm/Rx1310nm,Tx1490nm/Rx1550nm,Tx1550nm/Rx1490nm, Tx1310nm/Rx1490nm,Tx1490nm/Rx1310nm

    Distance：2km,10km,20km,40km,80km,120km,Customized

    Port Type：LC Port, SC Port

    Learn more
    • Dual data-rate of 1.25Gbps/1.063Gbps operation
    • 1310nm FP laser transmitter and 1550nm PIN photo-detector for 10/20km transmission
      1310nm DFP laser transmitter and 1550nm PIN photo-detector for 40km transmission
      1550nm DFB laser transmitter and 1310nm PIN photo detector for10/20/40km transmission
      1490nm DFB laser transmitter and 1550nm APD photo detector for 80km/120km transmission
      1550nm DFB laser transmitter and 1490nm APD photo detector for 80km/120km transmission
    • Compliant with SFP MSA and SFF-8472
    • Hot-Pluggable
    • Digital Diagnostic Monitoring
    • Compatible with SONET OC-24-LR-1
    • Compatible with RoHS
    • +3.3V single power supply
    • Operating case temperature: Standard:  0 to +70°C
OUR CASE
ISP FTTX Date center School

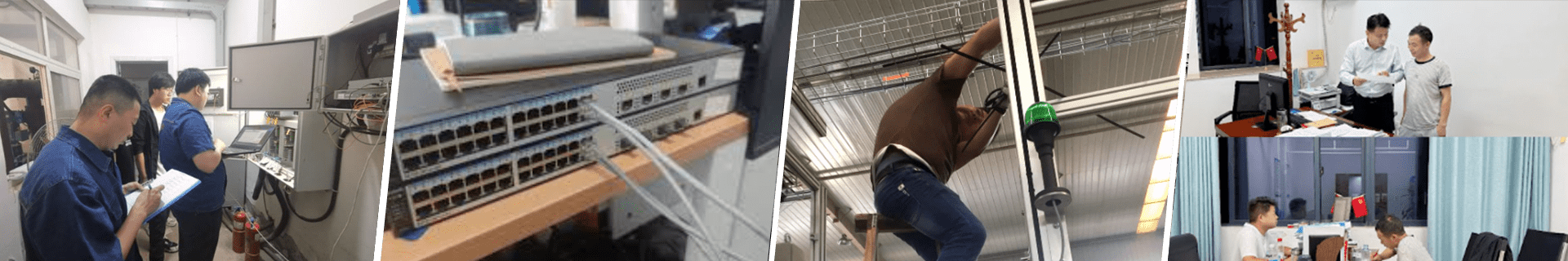

Our team
SEESUO combines professional knowledge with innovation to provide tailored technical support and advanced solutions for clients, meeting their needs and ensuring precision in network design, system optimization, and troubleshooting. The technical team at SEESUO consistently stays at the forefront of technology.
  • This solution delivers a cost-effective, future-ready network infrastructure for small and medium-sized industrial parks through structured design and standardized implementation, empowering enterprises to achieve digital transformation goals.
Requirements Analysis and Planning
Collaborate with IT departments to model traffic patterns, determine concurrent user counts, IoT device quantities, and 3-year growth projections. Output IP address plans and equipment selection lists.

Design and Deployment

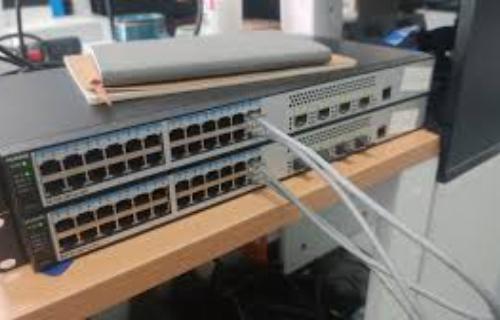

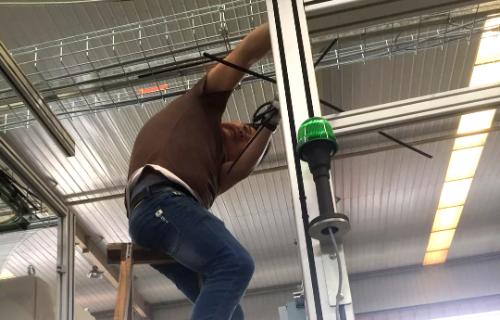

Draw tray routing and outlet distribution diagrams. Core engine room deploys two S5700 switches in stack mode. Access layer uses S2700 series devices. Complete fiber splicing and copper termination with labeled coding.

System Commissioning and Optimization
Configure MSTP to prevent loops. Enable VRRP virtual gateway on出口 routers. Test cross-VLAN file transfer speeds via iperf3, adjusting QoS policies for video conferencing.

Acceptance and Handover
Submit cabling acceptance reports (including channel test data), equipment configuration documents, and O&M manuals. Conduct 72-hour stability tests, offering 2-year factory warranty and 7×24 fault response.
